| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Length | |
| Mounting Type | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Wire Gauge |

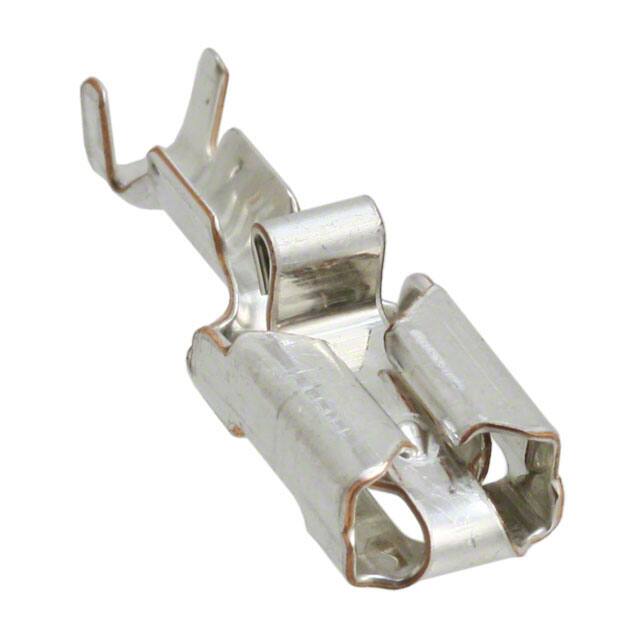

The TE Connectivity 160773-3 is a female quick connect receptacle designed for reliable wire-to-wire or wire-to-panel connections. It accepts 15.5 to 20 AWG wire and features a 0.250" (6.35mm) tab width with a 0.032" (0.81mm) thickness. The non-insulated brass contact is tin-plated for corrosion resistance. Termination is via crimp, and the connector is free-hanging (in-line) for easy installation. Typical applications include power distribution, control circuits, and automotive wiring harnesses.
15.5-20 AWG.
0.250" (6.35mm) width and 0.032" (0.81mm) thickness.
Brass contact with tin finish.
No, it is non-insulated.
Crimp.
Free Hanging (In-Line).
