| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| SVHC Present | |
| Storage Temperature | |
| Tab Thickness | |
| Tab Width | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Wire Gauge |

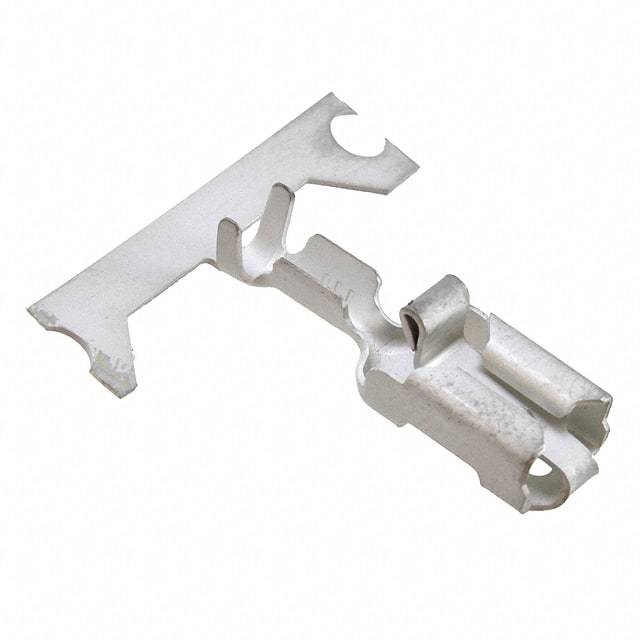

The TE Connectivity 160759-3 is a non-insulated female quick disconnect terminal designed for wire-to-tab connections. It accepts 16 to 20 AWG wire and features a 0.250" (6.35mm) tab width with a 0.032" (0.81mm) tab thickness. The terminal is made of brass with a tin-plated finish, providing good conductivity and corrosion resistance.
The terminal uses a crimp termination method and is designed for free hanging (in-line) mounting. Its overall length is 22.30mm (0.878"). The standard terminal type and female gender make it suitable for a wide range of quick disconnect applications.
This component is commonly used in wire harnesses, control panels, and other applications where reliable, quick-connect and disconnect connections are required. The non-insulated design allows for use in environments where insulation is not needed or where additional insulation can be applied by the user.
Free hanging (in-line).
16-20 AWG.
0.250" (6.35mm).
Brass with tin plating.
No, it is non-insulated.
Crimp.
Female.
