| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
45,000 pcs
|
45000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| SVHC Present | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Wire Gauge |

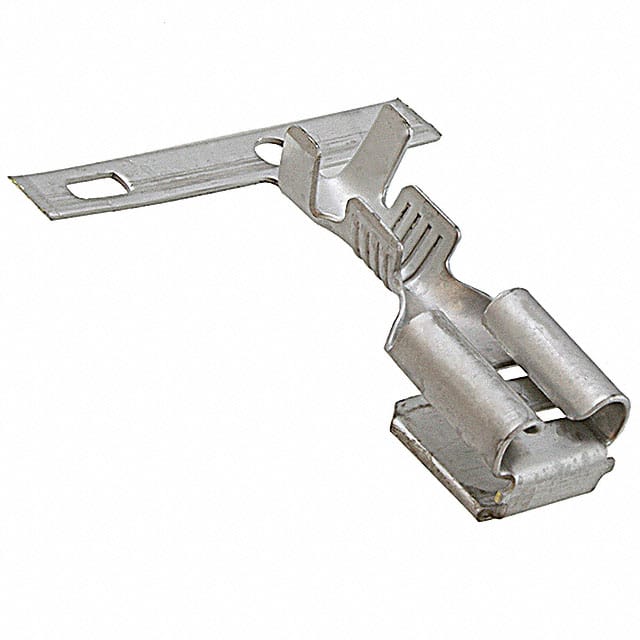

The TE Connectivity 160739-2 is a stacked quick disconnect terminal designed for reliable wire-to-wire or wire-to-tab connections. This terminal features both female and male contacts in a single stacked configuration, allowing for versatile connection options. It accommodates 14-18 AWG wire and uses a crimp termination for secure attachment. The tab measures 0.250" (6.35mm) in width, 0.032" (0.81mm) in thickness, and 0.303" (7.70mm) in length. The contact is made of brass with a tin finish, providing good conductivity and corrosion resistance. The terminal is non-insulated and designed for free hanging (in-line) mounting. The overall length is 20.09mm (0.791"). This part is commonly used in power distribution, automotive, and industrial applications where quick and reliable connections are needed.
14-18 AWG
0.250" (6.35mm)
No, it is non-insulated.
Brass contact with tin finish.
Crimp termination.
Free hanging (in-line).
