| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,000 pcs
|
8000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Overall Length | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Wire Gauge |

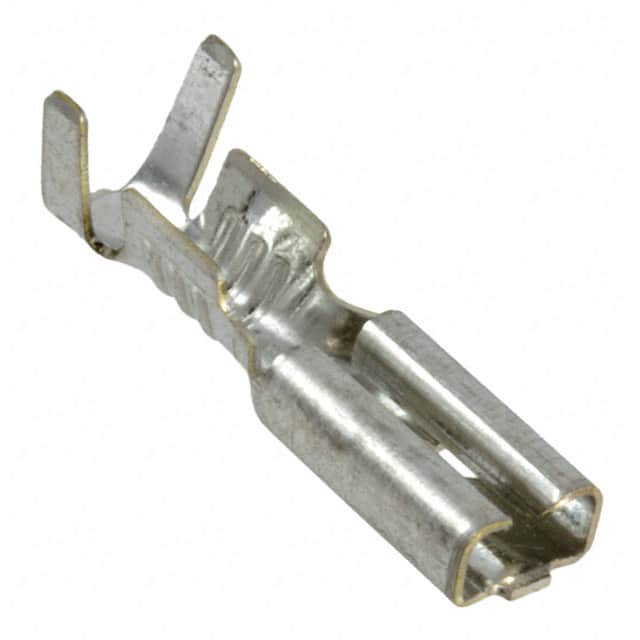

The TE Connectivity 160668-2 is a non-insulated quick connect receptacle designed for wire-to-wire or wire-to-board connections. It accepts 15.5-20 AWG wire and features a 0.110" (2.79mm) tab width for mating with standard quick disconnect tabs.
This terminal uses a crimp termination style for secure and reliable connections. The contact is made of brass with a tin plating, providing good conductivity and corrosion resistance. The overall length is 15.00mm (0.591"), with a tab length of 5.50mm (0.217") and tab thickness of 0.81mm (0.032").
The part is free hanging (in-line) mounted and is non-insulated, making it suitable for applications where insulation is not required. It is classified as a standard terminal type and is female gender.
Compliance includes RoHS3, REACH unaffected, and MSL level 1 unlimited, though these are unverified. No electrical ratings are specified.
Free Hanging (In-Line)
15.5-20 AWG
0.110" (2.79mm)
Crimp
No, it is non-insulated.
Brass contact with tin plating.
RoHS3 Compliant (unverified)
