| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,600 pcs
|
1600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Length | |
| Mounting Type | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Wire Gauge |

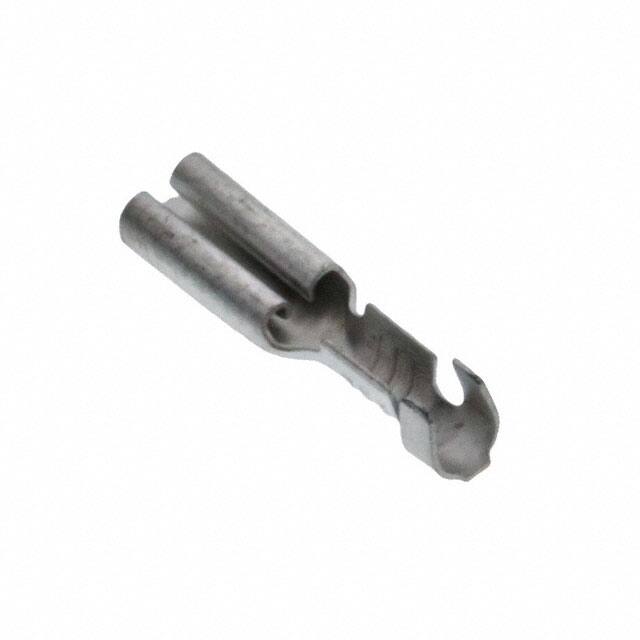

The TE Connectivity 160539-2 is a 110 FASTON IS female quick disconnect terminal designed for free hanging (in-line) mounting. It features a standard terminal type with a tab width of 0.110" (2.79mm) and a length of 15.00mm (0.591"). The terminal is constructed from brass with a tin contact finish, providing reliable electrical connections.
This terminal uses crimp termination and is compatible with 17-20 AWG wire gauges. It is non-insulated, making it suitable for applications where insulation is not required or where heat shrink tubing is applied after termination.
Typical applications include wire-to-board or wire-to-wire connections in automotive, industrial, and consumer electronics. The compact design allows for use in space-constrained environments.
The part is RoHS3 compliant and has a moisture sensitivity level of 1 (unlimited), offering flexibility in various manufacturing processes. Note that compliance data is unverified and should be confirmed with the manufacturer.
Free hanging (in-line) mounting.
0.110" (2.79mm).
17-20 AWG.
Crimp termination.
Brass with tin finish.
No, it is non-insulated.
15.00mm (0.591").
