| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,500 pcs
|
3500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Gender | |
| Insulation | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| SVHC Present | |
| Tab Thickness | |
| Tab Width | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Wire Gauge |

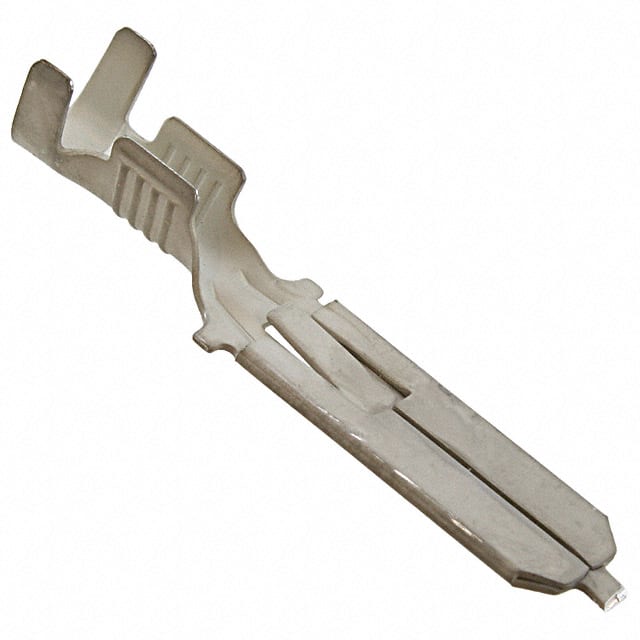

The TE Connectivity 160450-2 is a standard male quick connect tab terminal designed for free hanging (in-line) applications. It features a 0.250" (6.35mm) tab width and 0.032" (0.81mm) tab thickness, making it compatible with common 0.250" series quick disconnect receptacles.
The terminal is non-insulated and uses a crimp termination method for secure wire attachment. It accepts 14-18 AWG wire gauge and is constructed from phosphor bronze with a tin contact finish for reliable conductivity and corrosion resistance. The serrated termination feature enhances grip on the wire for improved mechanical and electrical connection.
This component is suitable for a wide range of power and signal interconnection applications where a quick connect/disconnect interface is required. Its free hanging design allows for flexible placement within wiring harnesses and assemblies.
The tab width is 0.250" (6.35mm).
It accepts 14-18 AWG wire.
No, it is non-insulated.
It uses crimp termination.
The contact is phosphor bronze with a tin finish.
It is free hanging (in-line) mounting.
Yes, it features serrated termination for improved wire grip.
