| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
36,500 pcs
|
36500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| SVHC Present | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Wire Gauge |

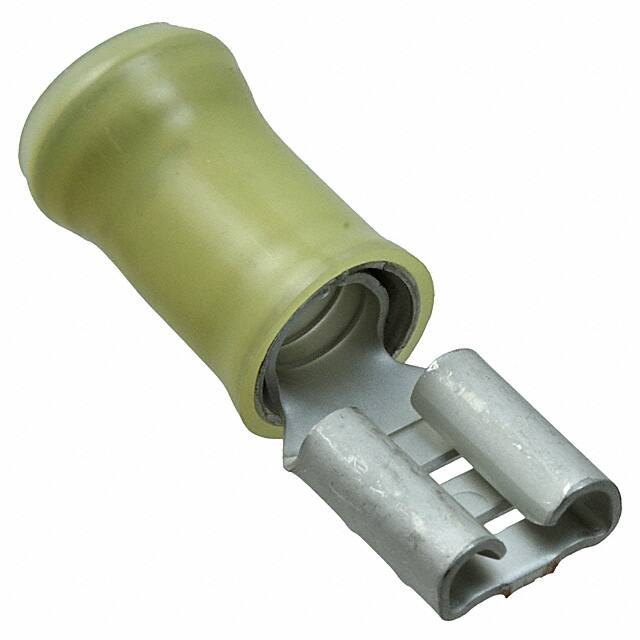

This is a quick connect receptacle from TE Connectivity, part number 160314-5. It is a female terminal designed for 10-11.5 AWG wire, featuring a 0.250" (6.35mm) tab width and 0.031" (0.79mm) tab thickness. The overall length is 25.78mm (1.015").
The terminal uses a crimp termination and is free hanging (in-line) mounting. The contact is made of phosphor bronze with a tin finish, providing good conductivity and corrosion resistance. The non-mating end is insulated, and the insulation color is yellow.
This component is suitable for power and signal connections in various applications. It is a standard type quick disconnect terminal, commonly used in automotive, appliance, and industrial equipment. The wire gauge range of 10-11.5 AWG indicates it is for heavier gauge wires.
0.250" (6.35mm).
10-11.5 AWG.
Crimp.
Free hanging (in-line).
Phosphor bronze with tin finish.
Yes, the non-mating end is insulated.
Yellow.
