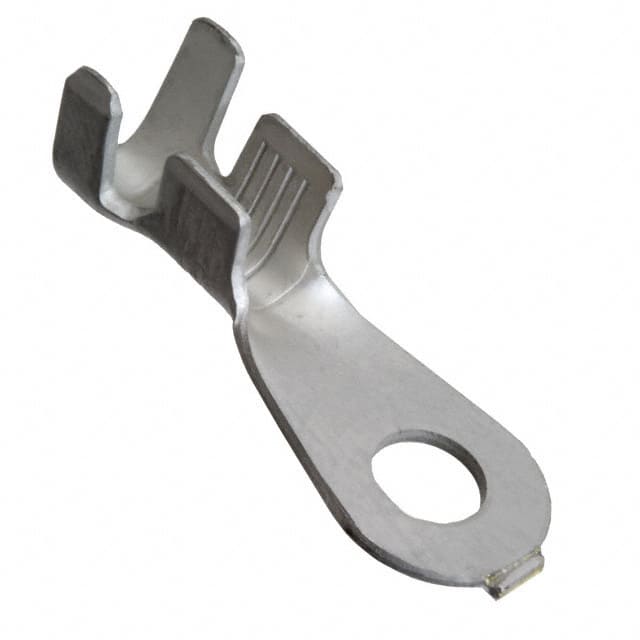

160163-2 TE Connectivity 160163-2 is a non-insulated ring terminal with M4 stud size, accepting 10-12 AWG wire. It features a tin-plated brass contact and crimp termination.
Mfr Part #:

160163-2

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 160163-2 is a non-insulated ring terminal with M4 stud size, accepting 10-12 AWG wire. It features a tin-plated brass contact and crimp termination.
✓ Total Stock: 4,411 pcs

160163-2 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
4,400 pcs
On Request
4400 pcs On Request 1 On Request On Request On Request On Request On Request
Trace Tec ✓
Non-Authorised Inventory information
11 pcs
On Request
11 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

160163-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Finish
Contact Material
Insulation
Lead Style
Length
Mounting Type
Stud
Terminal Type
Termination
Termination Style
Thickness
Width
Wire Gauge
View Similar Products (0)

160163-2 Description

Short technical summary and product information.

The TE Connectivity 160163-2 is a circular ring terminal designed for wire-to-stud connections. It accommodates 10-12 AWG wire and is terminated via crimp. The terminal is non-insulated and features a tin-plated brass contact for electrical conductivity. Mechanical dimensions include a length of 24.00mm (0.945"), width of 9.00mm (0.354"), and thickness of 0.76mm (0.030"). The mounting type is free hanging (in-line), making it suitable for direct wire connections to M4 studs. This terminal is commonly used in electrical wiring and power distribution applications where a reliable, low-resistance connection is required.

160163-2 Quick Information

Product Type: Ring Terminal
Canonical Name: TE Connectivity 160163-2 Ring Terminal, Circular, M4 Stud, 10-12 AWG, Non-Insulated, Crimp
Subcategory: Non-Insulated Ring Terminal

160163-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

160163-2 Features

  • Circular ring terminal for M4 stud.
  • Accepts 10-12 AWG wire gauge.
  • Tin-plated brass contact material.
  • Non-insulated design for exposed connections.
  • Crimp termination for secure wire attachment.

160163-2 Applications

  • Terminates 10-12 AWG wires to M4 studs.

160163-2 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the stud size of this ring terminal?

The stud size is M4.

What wire gauge does the 160163-2 terminal accept?

It accepts 10-12 AWG wire.

Is the ring terminal insulated?

No, it is non-insulated.

What termination style does this terminal use?

Crimp termination.

What is the mounting type of the 160163-2?

Free hanging (in-line) mounting.

What is the contact material and finish?

Brass contact with tin plating.

What are the overall dimensions of this ring terminal?

Length 24.00mm, width 9.00mm, thickness 0.76mm.
