| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Insulation | |
| Length | |
| Mounting Type | |
| SVHC Present | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Thickness | |
| Width | |
| Wire Gauge |

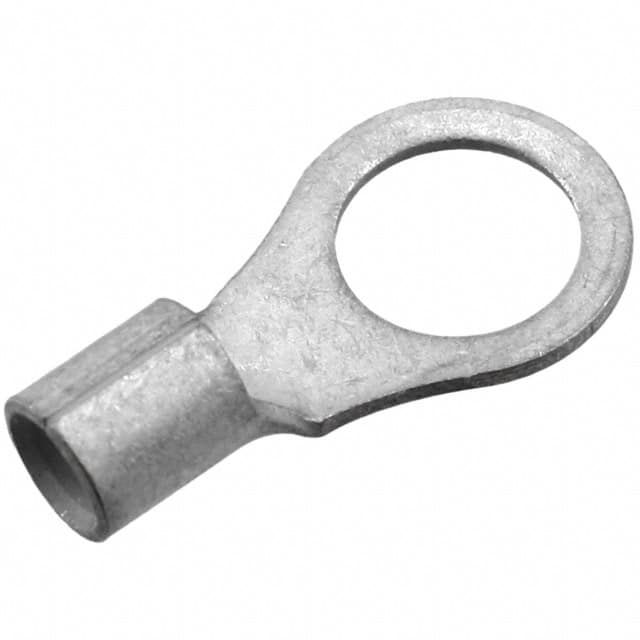

The TE Connectivity 160056 is a non-insulated ring terminal designed for 8 AWG (American Wire Gauge) wire. It features a circular terminal type and is intended for free-hanging (in-line) mounting, making it suitable for applications where direct wire termination is required. The termination method is crimp, providing a secure mechanical and electrical connection.
The contact is made of copper with a tin plating, ensuring good conductivity and corrosion resistance. The terminal has a thickness of 1.22mm (0.048"), a width of 15.09mm (0.594"), and an overall length of 29.72mm (1.170"). A notable feature of this terminal is its brazed seam construction, which enhances structural integrity.
This ring terminal is commonly used in power distribution, automotive, industrial control, and other electrical systems where reliable termination of large-gauge wire is needed. The non-insulated design allows for compact installation and is often paired with heat shrink tubing or other insulation methods as needed.
This ring terminal is designed for 8 AWG wire.
The terminal type is circular (ring).
The mounting style is free hanging (in-line).
The termination method is crimp.
No, this terminal is non-insulated.
The contact material is copper with a tin finish.
The terminal is 1.22mm thick, 15.09mm wide, and 29.72mm long.
