| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30,523 pcs
|
30523 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Tape & Reel |

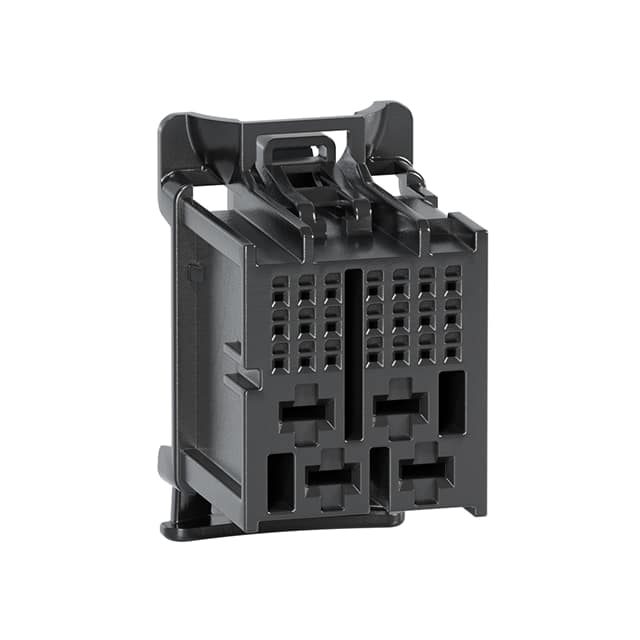

The Molex 1600270013 is a rectangular connector housing designed for use in wire-to-wire or wire-to-board applications. It is a receptacle housing with 25 total positions, including 21 signal contacts and 4 power contacts, providing a compact solution for mixed power and signal needs. The housing features a latch lock fastening mechanism for secure mating and includes Connector Position Assurance (CPA) for added reliability. Termination is via crimp contacts, which are sold separately. The housing is black in color and is designed for free hanging (in-line) mounting, making it suitable for cable assemblies. The connector housing is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited). Note that compliance data is unverified. This housing is part of Molex's rectangular connector family, commonly used in automotive, industrial, and consumer electronics applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.33 | $1.33 |
| 10+ | $1.14 | $1.14 |
| 25+ | $0.72 | $0.72 |
| 500+ | $0.70 | $0.70 |
| 720+ | $0.68 | $0.68 |
| 5,040+ | $0.62 | $0.62 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
25 positions, comprising 21 signal and 4 power contacts.
Free hanging (in-line) mounting.
Latch lock.
Crimp.
Yes, it includes CPA.
Black.
