| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
48 pcs
|
48 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| SVHC Present | |
| Stud | |
| Stud Size | |
| Terminal Type | |
| Termination | |
| Thickness | |
| Width | |
| Wire Gauge |

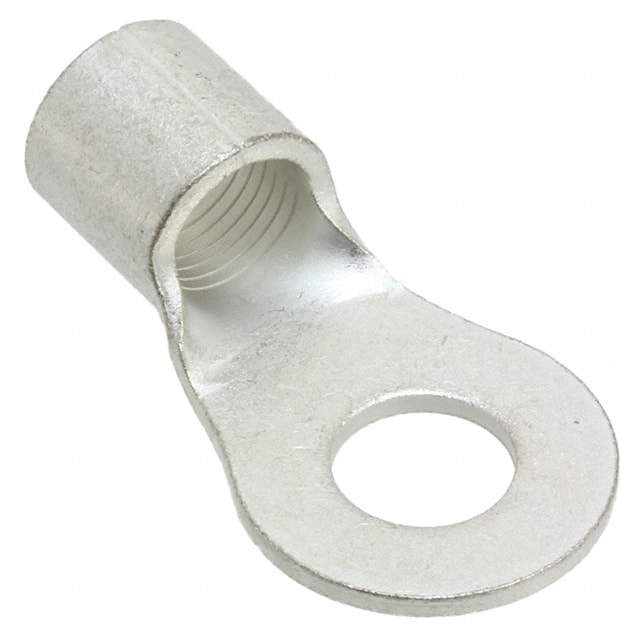

The TE Connectivity 160002 is a circular ring terminal designed for 2 AWG wire, featuring an M10 stud size. It uses a crimp termination method and is non-insulated, making it suitable for applications where a secure, direct metal-to-metal connection is required.
The terminal is constructed from copper with a tin finish, providing good conductivity and corrosion resistance. It includes a brazed seam and serrated termination for reliable mechanical and electrical performance. The part measures 42.20mm in length, 22.20mm in width, and 1.80mm in thickness.
This ring connector is designed for free hanging (in-line) mounting, making it appropriate for power distribution, battery connections, and other heavy-gauge wiring applications. The 2 AWG wire gauge and M10 stud size suit high-current installations.
2 AWG.
M10 stud.
Crimp termination.
No, it is non-insulated.
Copper with a tin finish.
Length 42.20mm, width 22.20mm, thickness 1.80mm.
