| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Insulation | |
| Length | |
| Mounting Type | |
| Stud | |
| Stud Size | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Thickness | |
| Width | |
| Wire Gauge |

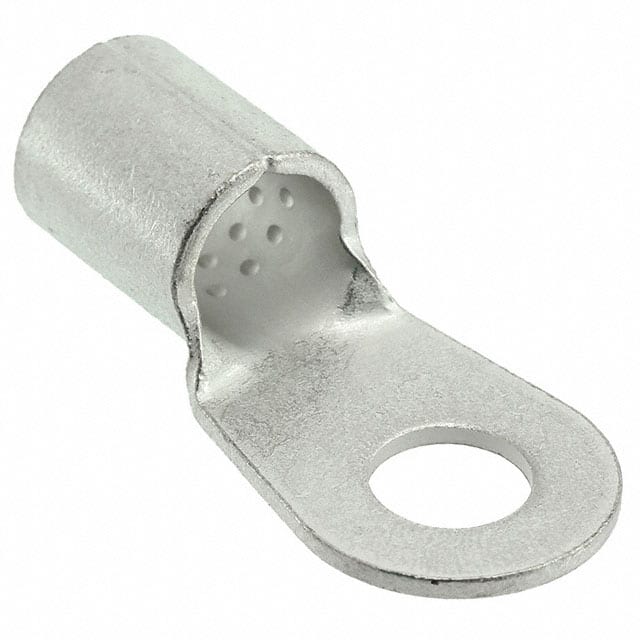

TE Connectivity 160000 is a non-insulated ring connector designed for heavy-duty electrical connections. It features a circular terminal that accommodates M10 studs and accepts wire gauges from 1/0 to 1 AWG. The connector uses a crimp termination method for reliable and permanent connections.
The contact is made of copper with a tin finish, ensuring good conductivity and corrosion resistance. The connector includes serrated termination for improved grip and reduced contact resistance. It is designed for free hanging (in-line) mounting, making it suitable for various wiring applications.
With dimensions of 49.70mm length, 22.20mm width, and 1.80mm thickness, this ring connector is robust for industrial and automotive use. The non-insulated design allows for direct metal-to-metal contact, ideal for applications where insulation is not required.
Free Hanging (In-Line).
1/0-1 AWG.
M10.
Crimp.
Copper with tin finish.
No, it is non-insulated.
Thickness 1.80mm, width 22.20mm, length 49.70mm.
