| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
246 pcs
|
246 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Features | |
| For Use With | |
| Length | |
| Material | |
| Operating Temperature | |
| Package Type | |
| Thread Size | |
| Torque |

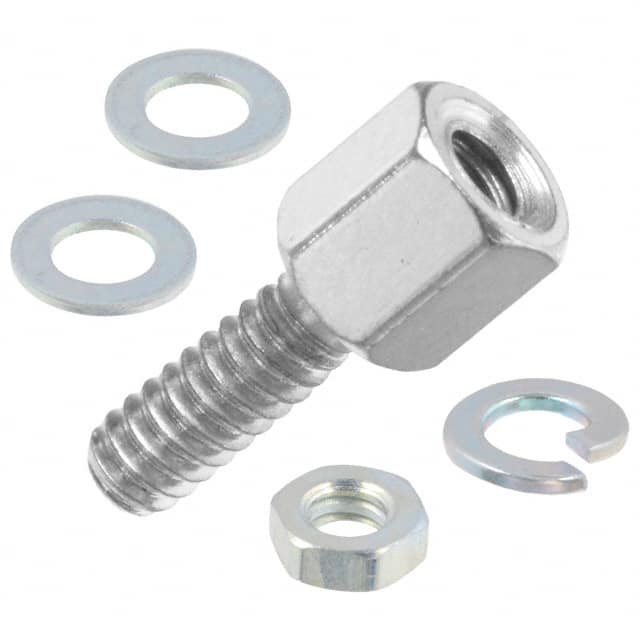

The NorComp 160-000-010R031 is a jackscrew socket kit designed for use with D-Sub connectors. This kit includes one 4-40 UNC-2B female screwlock, two 4-40 flat washers, one 4-40 lock washer, and one 4-40 nut. The screwlock is made of brass with nickel plating, the flat washers are steel with nickel plating, the lock washer is stainless steel, and the nut is zinc-plated steel.
The screwlock has a length of 7.92 mm (0.312 inches). The recommended maximum torque is 60 in-oz. The operating temperature range is -40°C to 120°C. The kit is packaged as a kit and is RoHS compliant.
The jackscrew uses a 4-40 socket and 4-40 screw thread.
The screwlock length is 7.92 mm (0.312 inches).
The screwlock is brass with nickel plating, flat washers are steel with nickel plating, lock washer is stainless steel, and nut is zinc-plated steel.
The operating temperature range is -40°C to 120°C.
The maximum recommended torque is 60 in-oz.
Yes, it is RoHS3 compliant as stated in the datasheet.
