| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
26,500 pcs
|
26500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| AEC-Q101 | |
| Applications | |
| Automotive Grade | |
| Bidirectional Channels | |
| Current | |
| Maximum Clamping Voltage | |
| Maximum Peak Pulse Power (10/1000μs) | |
| Maximum Reverse Leakage Current | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Package / Case | |
| Peak Pulse Current (10/1000µs) | |
| Power | |
| Power Line Protection | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Test Current | |
| Type | |
| Voltage | |
| Working Peak Reverse Voltage | |
| breakdown_voltage_max | |
| breakdown_voltage_min |
The Bourns 15KPA024C-SD-Q is a high-power Zener transient voltage suppressor (TVS) diode designed for surge and ESD protection in demanding automotive applications. This bidirectional device offers a working peak reverse voltage of 24 V and a maximum clamping voltage of 37.4 V, providing robust protection for sensitive electronics.
With a peak pulse power rating of 15 kW (10/1000 µs) and a peak pulse current of 400.7 A, this TVS diode handles high-energy transients effectively. The breakdown voltage range is specified from 24.49 V to 29.50 V at a test current of 5 mA, and the maximum reverse leakage current is 10 µA at the working voltage.

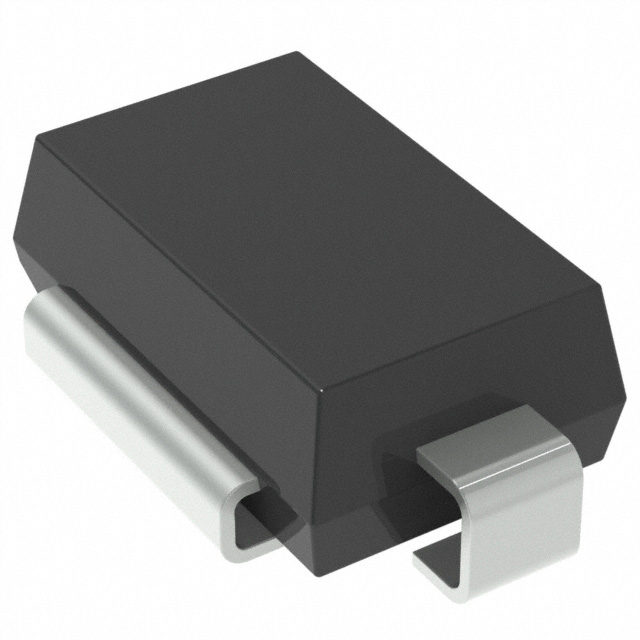

Housed in a surface-mount DO-218AB package (DO-218), the device operates over a wide temperature range from -55°C to +175°C. It is AEC-Q101 qualified for automotive reliability. Surface-mount packaging facilitates efficient automated assembly.
The working peak reverse voltage is 24 V.
The maximum clamping voltage is 37.4 V at 400.7 A.
Yes, this device is AEC-Q101 qualified for automotive applications.
The maximum peak pulse power is 15 kW for a 10/1000 µs pulse.
It is in a surface-mount DO-218AB package (DO-218).
