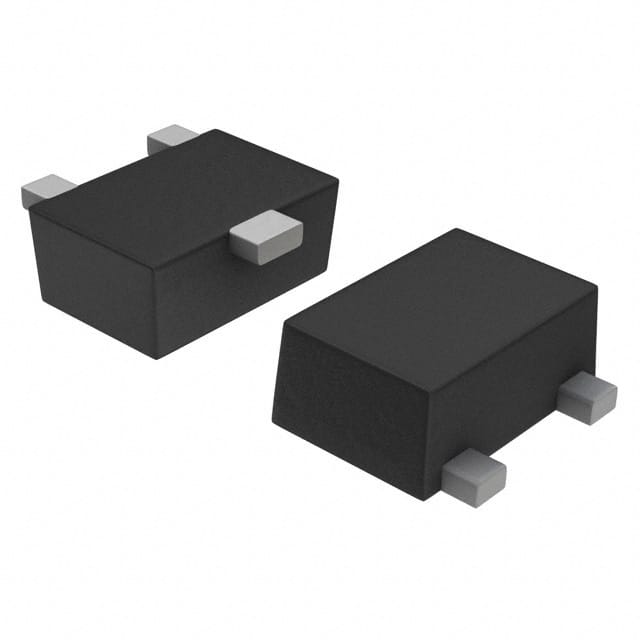

The 15GN03FA-TL-H is an NPN RF bipolar junction transistor from On Semiconductor designed for VHF, UHF, mixer, oscillator, and IF amplifier applications. It features a maximum collector-to-emitter voltage of 10V and a maximum collector current of 70mA, with a collector dissipation of 250mW. The device offers a typical DC current gain (hFE) of 180 at VCE=5V and IC=10mA, and a typical gain-bandwidth product (fT) of 1.5GHz at VCE=5V and IC=20mA. Forward transfer gain is typically 14dB at 0.4GHz, with a typical noise figure of 1.6dB at the same frequency. The transistor is supplied in an ultra-small SSFP package (SC-81, JEITA/JEDEC) with surface-mount termination, enabling compact and slim end-product designs. The part is halogen-free and lead-free (Pb Free) compliant per the datasheet.
| Qty | Low | High |
|---|---|---|
| 8,000+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum collector-to-emitter voltage (VCEO) is 10V.
The typical gain-bandwidth product (fT) is 1.5GHz at VCE=5V and IC=20mA.
It is available in an SSFP package, which is JEITA/JEDEC SC-81, a surface-mount package.
The typical noise figure (NF) is 1.6dB at VCE=3V, IC=2mA, and f=0.4GHz.
RoHS status is unverified from the datasheet, but the part is declared halogen-free and lead-free (Pb Free) compliant.
