| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,200 pcs
|
1200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Material | |
| Insulation Material | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| SVHC Present |

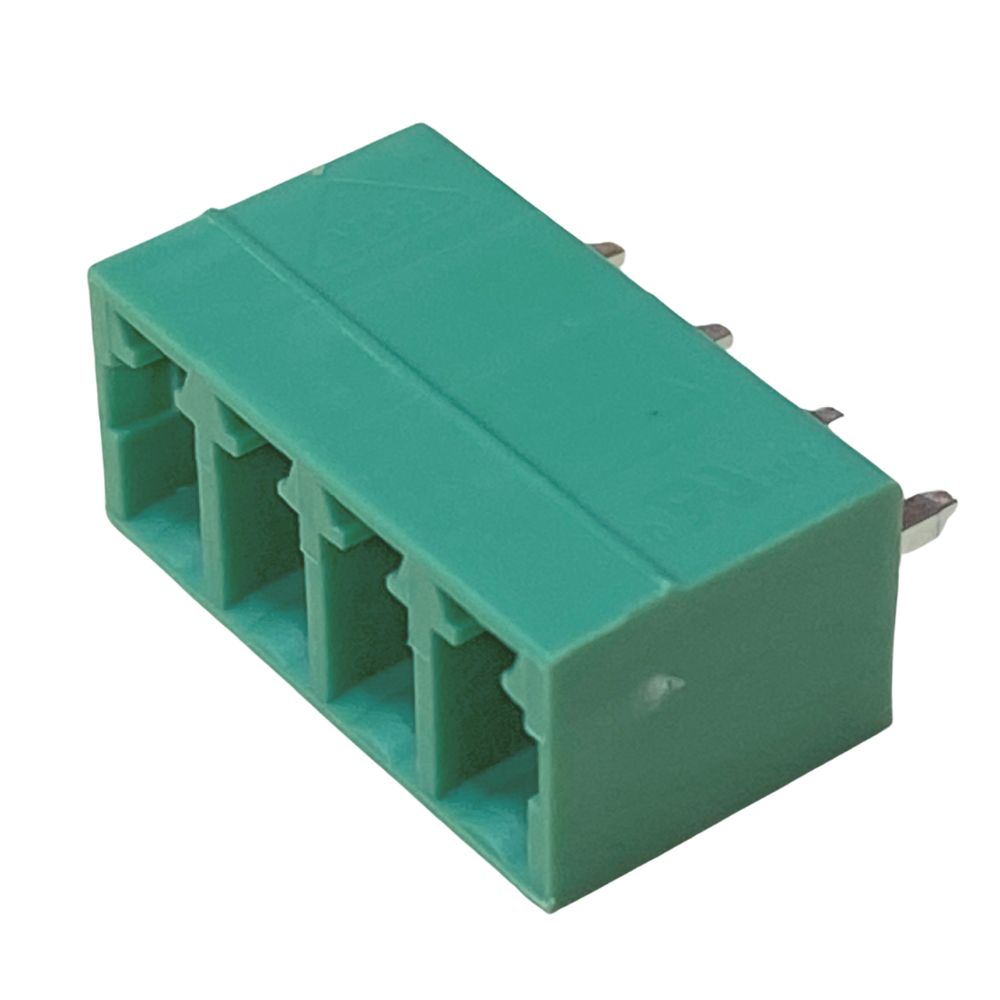

The Degson 15EDGVC-3.81-04P-14-00A(H) is a 4-position vertical PCB header with a 3.81mm pitch and a 90° connection direction, suitable for compact PCB designs.
This header is designed for compatibility with pluggable terminal blocks and supports wave and manual soldering methods. It features tin-plated copper alloy contacts housed in a flame-retardant PA66 (UL94V-0) insulating body for durability and safety.
Electrical specifications include a rated voltage of 250V/7A according to IEC standards and 300V/8A according to UL standards. The component operates effectively in harsh environments with an ambient temperature range of -40°C to +105°C.
It meets IEC61984/UL1059 standards and is REACH and RoHS compliant. The standard package quantity is 200 units.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 3.81 mm.
It has 4 positions in a single row.
Rated current is 7 A per IEC and 8 A per UL.
Rated voltage is 250 V per IEC and 300 V per UL.
It is installed by PCB welding (through-hole soldering).
The rated surge voltage is 2.5 kV (overvoltage category II/2).
The operating ambient temperature range is -40°C to 105°C.
