| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
750 pcs
|
750 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Rows | |
| Pitch | |
| Process |

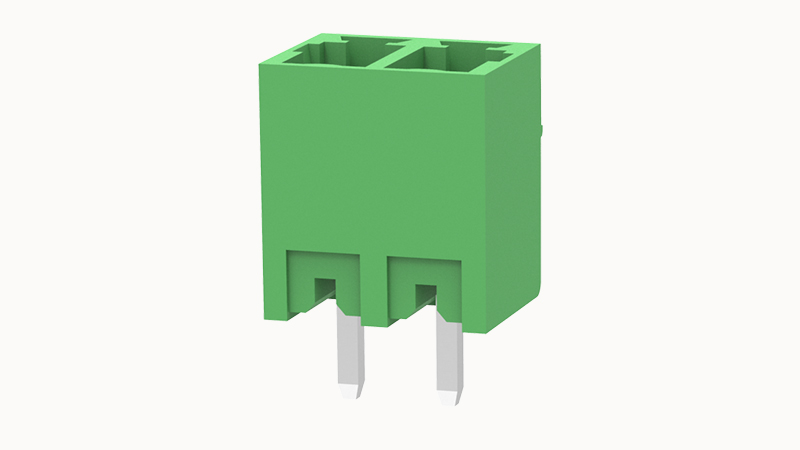

The Degson Electronics 15EDGVC-3.81-02P-14-00A(H) is a high-quality pluggable terminal block designed for PCB mounting. This component features a 3.81mm pitch and a single-row, straight-line pin arrangement, providing a compact solution for signal and power connections.
With a rated current of 7A and a rated voltage of 250V (II/2), this terminal block is suitable for a variety of industrial applications. The connection direction is perpendicular to the PCB (90°), facilitating efficient board layout. The materials used, including copper alloy contacts plated with tin and PA66 insulation, ensure durability and reliable performance.
This PCB socket supports wave soldering and manual soldering processes, offering flexibility in manufacturing. It operates within an ambient temperature range of -40°C to 105°C and meets UL94V-0 flammability standards. The universal installation method ensures a high degree of flexibility in device design.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This part has 2 positions.
The pitch is 3.81mm.
Rated current is 7A (II/2), with UL B and UL D ratings of 8A.
Rated voltage is 250V (II/2), with UL B and UL D ratings of 300V.
PCB welding is supported, with wave or manual soldering process.
The connection direction is 90°.
The operating temperature range is -40°C to 105°C.
