| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,995 pcs
|
1995 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connection Method | |
| Contact Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Torque |

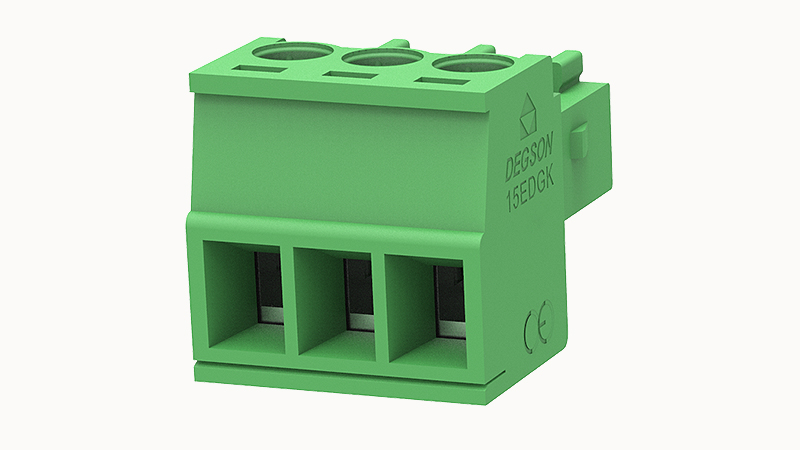

The Degson 15EDGK-3.5-03P-14-00A(H) is a pluggable terminal block designed for efficient and reliable connections on printed circuit boards. It offers a 3.5mm pitch, facilitating compact designs.
This terminal block is rated for a nominal current of 7A and a voltage of 250V (IEC) or 300V (UL). It supports conductor cross-sections from 0.5 to 1.5mm² for both solid and flexible wires, with AWG compatibility from 28 to 16.
The connection method is screw connection with an M2 screw thread, requiring a slotted screwdriver. The housing is constructed from PA66 with a UL94V-0 flammability rating, and the contacts are made of tin-plated copper alloy.
Designed for universal installation, this component is suitable for various applications requiring secure and flexible PCB connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch of this terminal block is 3.5 mm.
The terminal block has 3 positions.
According to IEC standards, the rated current is 7A.
According to IEC standards, the rated voltage is 250V.
It supports conductor cross-sections from 0.5 to 1.5mm² for both solid and flexible wires, corresponding to AWG 28-16.
The insulation material is PA66.
The flammability rating is UL94V-0.
