| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Operating Temperature | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

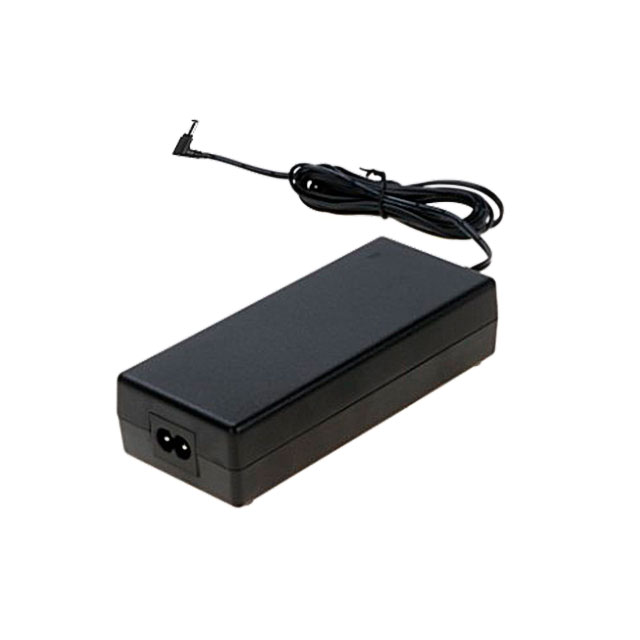

The 15DYS902-240400G is a 96W desktop AC/DC adapter from Ideal Power Ltd. It delivers a regulated 24V DC output at up to 4A. The adapter accepts a universal input voltage range of 90-264V AC at 47-63Hz, with a typical input current of 1.5A. Inrush current is limited to 80A at cold start, and leakage current is 0.25mA typical.
Electrical protections include over current protection with a threshold above 3.9A, continuous short circuit protection, and over voltage protection with auto recovery. Ripple and noise is 200mVp-p typical. Dielectric strength is rated at 4242VDC between primary and secondary for 3 seconds. The MTBF is 50,000 hours at 25°C full load.
Key electrical specifications: output voltage tolerance ±5%, output power 96W maximum. The adapter measures 145mm in length. No package or mounting details are provided in the datasheet, consistent with a desktop style adapter that is typically used with a separate AC power cord and DC output cable.
The input voltage range is 90-264V AC, and the output is 24V DC nominal.
Maximum output current is 4A, and maximum output power is 96W.
It includes over current protection (>3.9A), continuous short circuit protection, and over voltage protection with auto recovery.
Ripple and noise is 200mVp-p typical.
The MTBF is 50,000 hours at 25°C full load.
Dielectric strength is 4242VDC for 3 seconds at 5mA max.
