| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

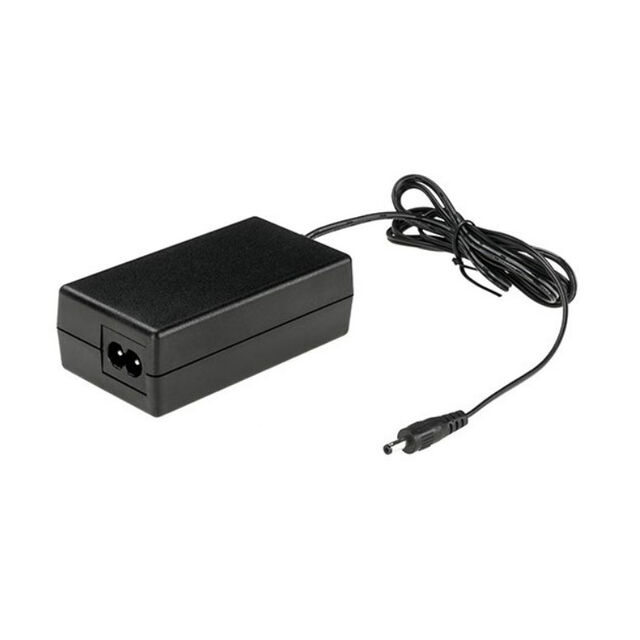

This external power supply from Ideal Power Ltd., model 15DYS851-480105W, delivers 50W of power with a 48V output voltage and a maximum current of 1.05A. It operates within a universal input voltage range of 90 to 264 VAC and meets Level VI efficiency standards.
The power supply is designed in a Desktop (Class II) form factor, measuring 97.5mm x 52.5mm x 32.3mm. It features an IEC 320-C8 input connector and a 2.1mm I.D. x 5.5mm O.D. x 11.0mm barrel plug output connector with positive center polarization. The cord length is 1.50 meters (59 inches), and the input cord is sold separately.
Designed for international use, this power supply is certified by CE, C-Tick, cULus, FCC, TUV, and UKCA. Its operating temperature range is from 0°C to 40°C. The unit is specifically suited for Medical applications and complies with standard 60601-1.
The output voltage is 48V.
The maximum output current is 1.05A.
The power rating is 50W.
It meets Level VI efficiency standards.
The operating temperature range is 0°C to 40°C.
The dimensions are 97.5mm x 52.5mm x 32.3mm.
The input connector is IEC 320-C8.
