| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

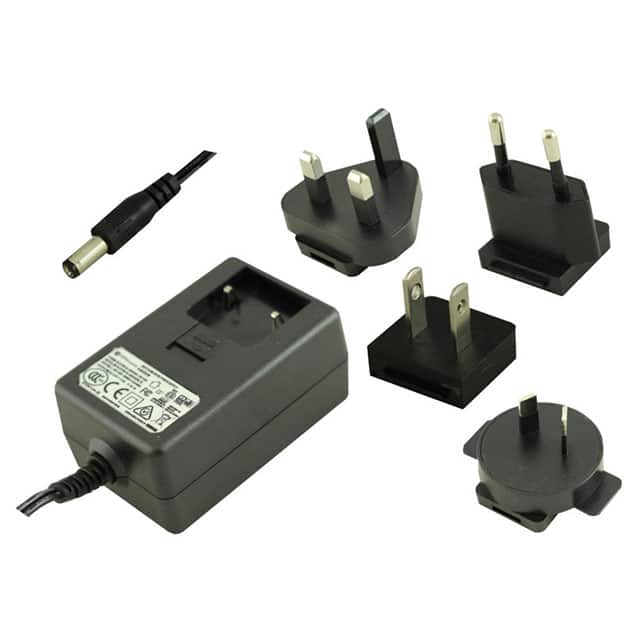

This AC/DC wall mount adapter from Ideal Power Ltd., part number 15DYS850-090500W-K, delivers 45 watts of power with a 9V output voltage and 5A current. It features an efficiency of 87.72% and a low no-load power consumption of 100mW maximum.
The adapter operates within a temperature range of 0°C to 40°C. Its mechanical dimensions are 84.5mm x 52.0mm x 35.0mm. The input connector is a multi-blade type, and the output connector is a standard barrel plug measuring 2.1mm I.D. x 5.5mm O.D. x 12.0mm with positive center polarization. The cord length is 47.2 inches (1.20m).
Designed for ITE (Commercial) applications, this adapter is suitable for international use and carries approvals from CE, GS, SAA, and UL. It complies with standard 60950-1. The unit is a Class II wall mount form factor.
9V DC.
5A.
45W.
0°C to 40°C.
Barrel plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm, positive center.
CE, GS, SAA, UL.
Wall mount (Class II).
