| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage |

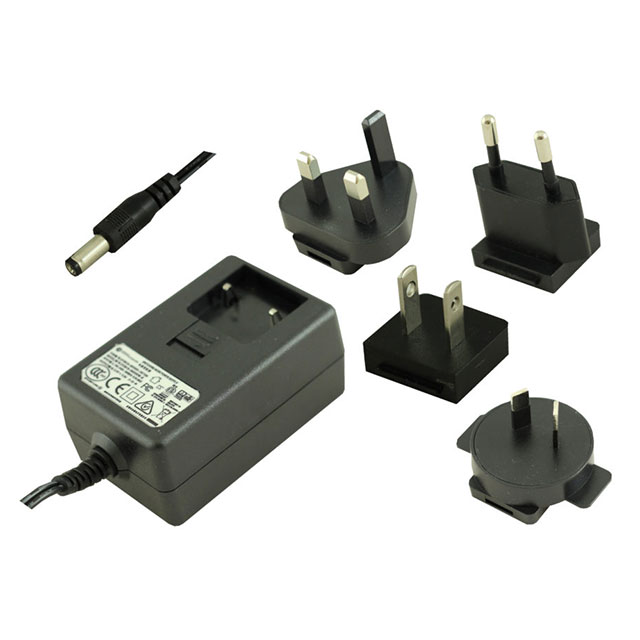

This Ideal Power Ltd. 15DYS830-240125W-K is an AC/DC wall mount adapter with a power rating of 30W. It delivers a stable 24V output at a maximum current of 1.25A, making it suitable for various commercial applications.
The adapter operates within a wide input voltage range of 90 to 264 VAC and features an efficiency of 86.94%. It is designed for ITE (Commercial) applications and comes with a multi-blade input connector and a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 12.0mm).
Compliance is indicated with CE, GS, SAA, and UL approvals. The adapter has a compact form factor, measuring 76.8mm x 47.5mm x 35.0mm, and operates within a temperature range of 0°C to 40°C. It adheres to the 60950-1 standard.
24V
Wall Mount (Class II)
0°C to 40°C
1.50 meters (59 inches)
A barrel plug with a 2.1mm inner diameter and 5.5mm outer diameter
86.94%
