| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Number of Outputs | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Width |

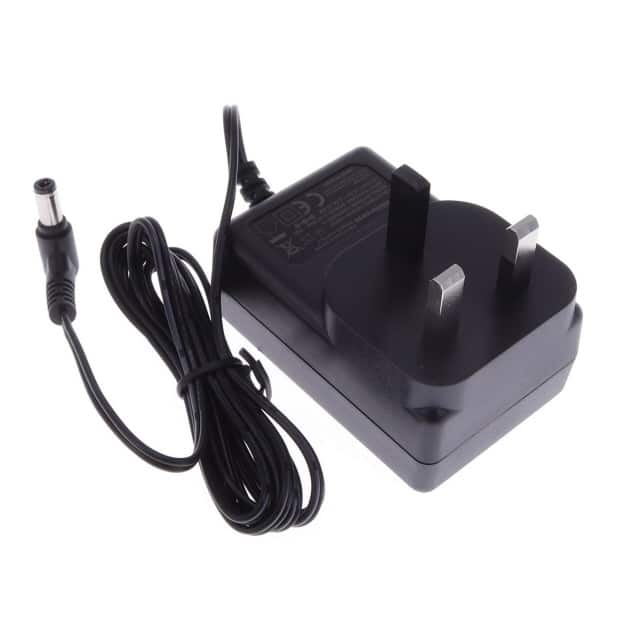

The Ideal Power Ltd. 15DYS830-120250W-3-2.5 is a single-output AC/DC plugtop power supply designed for small-scale electronic designs. It delivers 30W of clean power with a 12V DC output at 2.5A.
This power supply features a universal input voltage range of 90-264V AC and a fixed UK plugtop connection. It is certified to UKCA, CE, RoHS, and REACH standards and is compliant with EN 62368-1/IEC 62368-1 safety standards. The unit meets Efficiency Level VI and (EU) 2019/1782 requirements.
Designed for applications such as network equipment and signal distribution hardware, this series is ideal for embedded use across ITE, audio, and visual system designs. It includes Over Voltage Protection (OVP), Over Current Protection (OCP), and Short Circuit Protection (SCP). The dimensions are 76.8mm x 50mm x 36.6mm.
The input voltage range is 90-264 VAC at 47-63Hz.
The output voltage is 12 VDC.
The output current is 2.5A.
The output power is 30W.
The operating temperature range is 0°C to 40°C.
The typical efficiency is 87.0%, meeting Level VI efficiency standards.
It is designed for the United Kingdom with a fixed BS 1363 input plug.
