| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

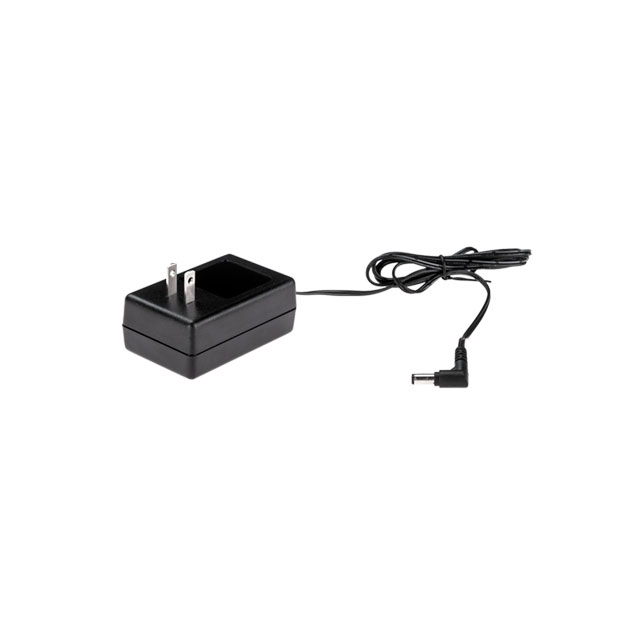

This AC/DC wall mount adapter from Ideal Power Ltd., part number 15DYS830-050400W-1-2.5, delivers 20 watts of power. It features a 5V output voltage and a maximum output current of 4A, suitable for various commercial ITE applications.
The adapter operates with an input voltage range of 90 to 264 VAC and utilizes a fixed blade input connector for North American regions. It meets the Level VI efficiency standard, ensuring energy savings. The output is delivered via a 2.5mm I.D. x 5.5mm O.D. barrel plug with a right-angle termination.
Designed for ease of use, this Class II wall mount adapter has dimensions of 76.8mm x 48.0mm x 31.0mm. It is approved by cULus and complies with the 62368-1 standard. The operating temperature range is from 0°C to 40°C.
The adapter provides a 5V output voltage with a maximum output current of 4A.
This adapter has a power rating of 20W.
The adapter accepts an input voltage range of 90 to 264 VAC.
Yes, it meets the Level VI efficiency standard.
The adapter can operate within a temperature range of 0°C to 40°C.
It uses a Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 11.0mm connector.
The adapter is approved by cULus.
