| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Width |

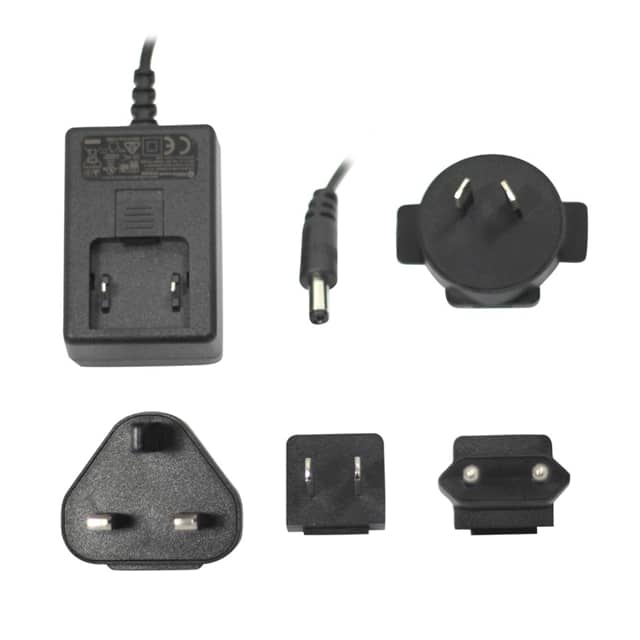

This 15DYS824-050400W-K is an AC/DC wall mount adapter from Ideal Power Ltd., delivering a stable 5V DC output with a maximum current of 4A, totaling 20W of power.
Designed for broad compatibility, it accepts a universal input voltage range of 100-240V AC at 50/60Hz. The adapter features a Class II wall mount form factor and utilizes interchangeable multi-blade input connectors for international use. Its output is delivered via a standard 2.1mm x 5.5mm x 12mm barrel plug with a positive center pin.
Key specifications include an efficiency of 83.08% and a low no-load power consumption of 100mW maximum. The operating temperature range is from 0°C to 40°C. This adapter is suitable for ITE (Commercial) applications and is certified to CE, GS, SAA, and UL standards.
The adapter provides a 5.0V DC output at 4.0A.
The power rating is 20 W.
The adapter accepts an input voltage range of 100-240V AC.
The dimensions are 76.8x47.5x35mm.
The operating temperature range is 0°C to 40°C.
It uses a Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm.
Yes, it is RoHS3 Compliant.
