| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

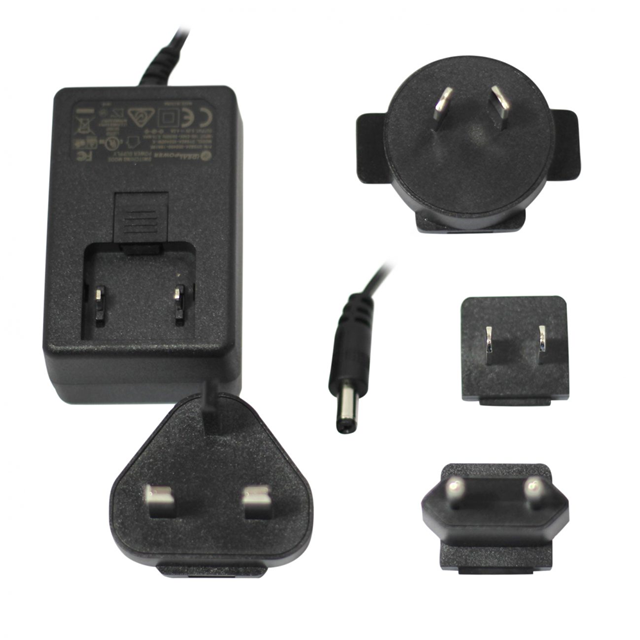

This AC/DC wall mount adapter from Ideal Power, model 15DYS818-090200W-K, delivers a stable 9V DC output at a maximum current of 2A, totaling 18W of power. Designed for commercial ITE applications, it features a wide input voltage range of 100-240V AC and operates efficiently at 85%.
The adapter is a Class II device with a positive center polarization and comes with a multi-blade input connector. The output is delivered via a standard barrel plug (2.1mm I.D. x 5.5mm O.D. x 12.0mm). Its compact dimensions are 65.5mm x 43.5mm x 36.2mm, making it suitable for various space-constrained environments.
Safety and compliance are ensured with approvals from CE, GS, SAA, and UL, adhering to the standard IEC 60950-1. The adapter operates within a temperature range of 0°C to 40°C and has a low no-load power consumption of 100mW maximum. It includes a 1.50m cord for convenient placement.
The adapter provides a 9.0V DC output at 2.0A.
This adapter has a power rating of 18W.
The adapter has an efficiency of 85%.
The adapter can operate in temperatures from 0°C to 40°C.
It is approved by CE, GS, SAA, and UL.
It uses a multi-blade input connector, which is included.
The adapter measures 65.5mm in length, 43.5mm in width, and 36.2mm in height.
