| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Weight | |
| Width |

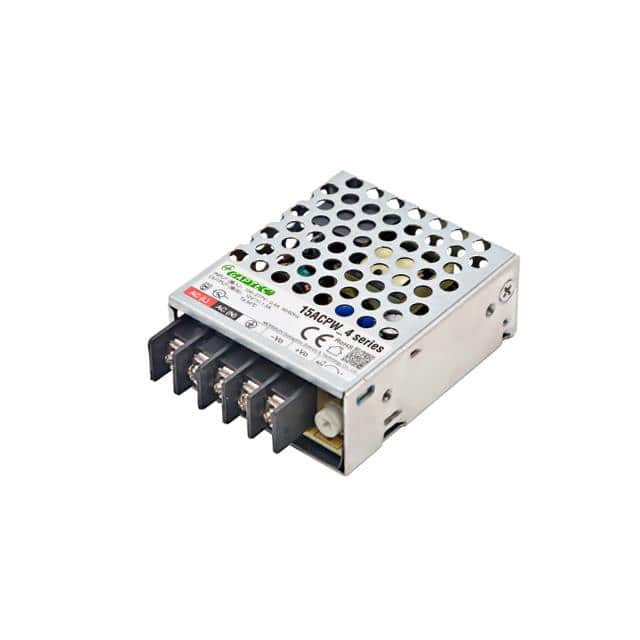

The GAPTEC Electronic 15ACPW_03S4 is an enclosed, single-output AC-DC switching power supply. It offers a universal input voltage range of 85-305VAC or 100-430VDC, making it versatile for various applications. This converter provides up to 15W of power with high efficiency and low no-load power consumption.
Key electrical specifications include a typical output voltage accuracy of ±1.0%, line regulation of ±0.5%, and load regulation of ±0.5%. It features a 4kVAC isolation test voltage and protection against output short circuit, over-current, and over-voltage. The operating ambient temperature range is -30°C to +70°C.
Designed for reliability, the 15ACPW_03S4 has an MTBF of over 700,000 hours. Its compact dimensions of 65.00 x 55.00 x 25.00 mm and chassis mount type make it suitable for integration into various systems. Safety standards include IEC/EN/UL62368 and GB4943.
This AC-DC converter is well-suited for industrial, LED lighting control, electricity, security, and telecommunications applications.
The input voltage range is 85-305VAC or 100-430VDC.
-30°C to 70°C (with derating).
Chassis mount, enclosed package.
4000VAC input to output isolation.
The converter supports output voltages of 3.3V, 5V, 12V, 15V, 24V, and 48V.
Yes, it has short circuit protection with auto recovery within 5 seconds.
65.0mm x 55.0mm x 25.0mm (2.56" x 2.17" x 0.98").
