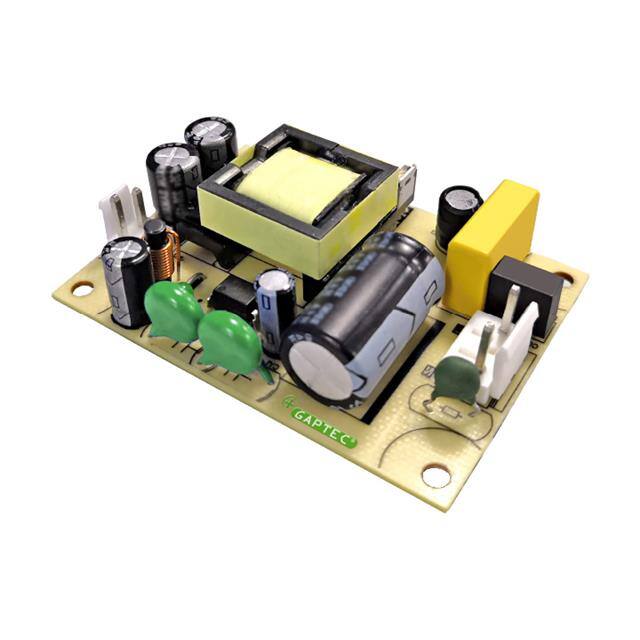

The GAPTEC Electronic 15ACO_12S3 is a 15W single output AC-DC converter from the 15ACO_3 series. It offers a wide universal input voltage range of 85-264 VAC and 100-370 VDC, making it suitable for global applications. This converter provides a regulated output with low ripple and noise, and includes protections for short circuit, overcurrent, and overvoltage.
Designed for high power density in a compact 2.5x1.8 inch footprint, the 15ACO_12S3 operates within an ambient temperature range of -25°C to +70°C. It boasts high efficiency and reliability, meeting CISPR32 / EN55032 Class B for EMI performance. The converter meets various safety standards including IEC/EN61000-4, CISPR32/EN55032, UL62368, EN62368, UL60335, and EN60335.
This AC-DC converter is suitable for surface mounting and is intended for industrial, office, and civil applications, including household appliances and ITE (Commercial) equipment. Its features include reinforced isolation and a standby power consumption of only 0.5W.
The input voltage range is 85-264 VAC (100-370 VDC).
The operating temperature range is -25°C to +70°C with derating.
It comes in a 5-SMD Module with 4 leads.
Yes, it includes over-voltage protection with output voltage clamp or hiccup, with thresholds up to 30V depending on output voltage.
Typical efficiency is 81%.
It complies with IEC62368/EN62368/UL62368/UL60335/EN60335 safety standards.
Hold-up time is 10 ms at 115VAC and 60 ms at 230VAC, both at 100% load.
