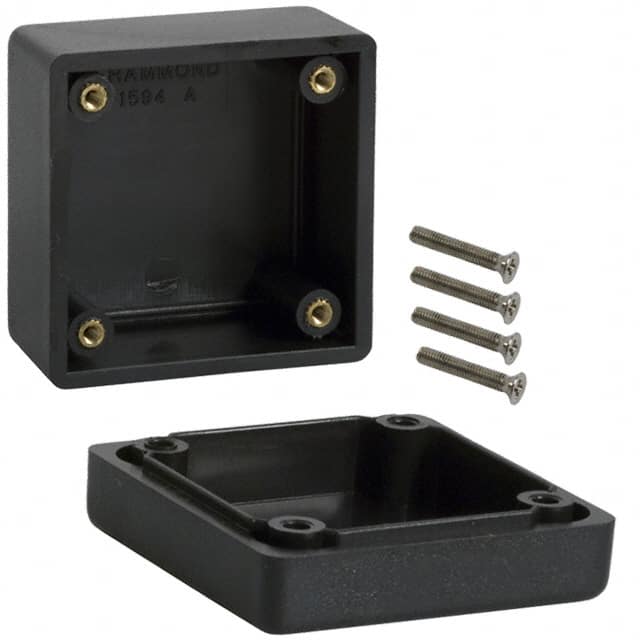

The Hammond Manufacturing 1594ABK is a heavy-duty ABS plastic box enclosure in black, part of the 1594 series. It measures 56mm x 56mm x 40mm (LxWxH) with a wall thickness of 3.3mm and weighs 0.05 kg. The enclosure includes a cover secured by four M3 x 0.5 machine screws threaded into integral brass bushings.
This general-purpose enclosure is rated IP54 for dust and splash protection and carries a UL94 V-0 flammability rating. The ABS material is flame retardant. The enclosure can be upgraded to IP66 with the optional 1594AGASKET gasket kit and screws with o-rings.
Typical applications include housing printed circuit boards, small electronic instruments, and control modules. The thick-wall design provides robust mechanical protection. The enclosure is packaged in shrink wrap.
IP54.
ABS plastic, black.
UL94 V-0.
56mm x 56mm x 40mm (LxWxH).
The manufacturer states RoHS compliant, but this has not been independently verified.
Yes, cover included.
3.3mm.
