| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Container Type | |
| Design | |
| Features | |
| Height | |
| Length | |
| Material | |
| Material Flammability Rating | |
| Packaging Type | |
| Ratings | |
| Thickness | |
| Width |

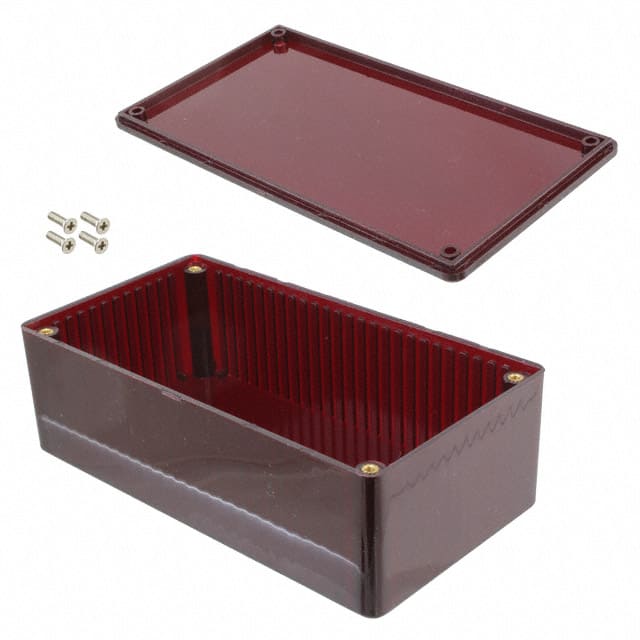

The Hammond Manufacturing 1591DTRD is a translucent red polycarbonate enclosure box from the 1591T Series. It includes a cover and measures 150.01mm (5.906 inches) in length, 80.01mm (3.150 inches) in width, and 50.00mm (1.969 inches) in height with a wall thickness of 2.01mm (0.079 inches). The box is designed for general purpose and project box applications.
Key specifications include a UL94 V-0 flammability rating and an IP54 rating for protection against dust and water splashes. The enclosure features card guides for mounting printed circuit boards. The material is polycarbonate, known for its impact resistance and dimensional stability.
The 1591DTRD is RoHS3 and REACH compliant. It is packaged in shrink wrap. This enclosure is suitable for housing electronic assemblies in industrial, commercial, and hobbyist environments where a durable, translucent red enclosure is required.
The enclosure is made of plastic, polycarbonate.
The color is translucent red.
The external dimensions are 150.01mm (5.906 inches) length, 80.01mm (3.150 inches) width, and 50.00mm (1.969 inches) height.
The material flammability rating is UL94 V-0.
The enclosure has an IP54 rating.
Yes, the design includes a cover.
Yes, it is RoHS3 compliant.
