| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Average Wall Thickness | |
| Color | |
| Container Type | |
| Design | |
| Features | |
| Height | |
| IP Rating | |
| Industrial Grade | |
| Inner Box Height | |
| Length | |
| Material | |
| Material Flammability Rating | |
| Narrowest Inside Dimension | |
| Packaging Type | |
| Ratings | |
| Thickness | |
| Weight | |
| Width |

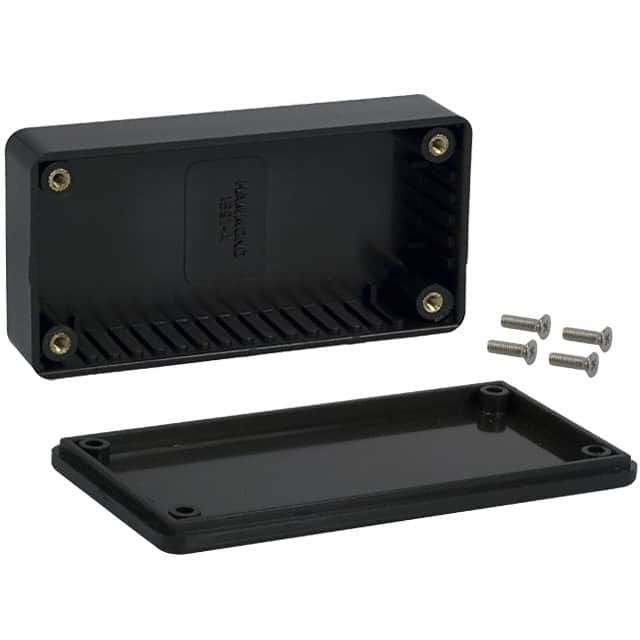

The Hammond Manufacturing 1591ABK is a multipurpose ABS plastic enclosure box designed for housing electronic projects and components. It measures 100.00mm in length, 50.00mm in width, and 24.82mm in height, providing a compact yet spacious interior for circuit boards and modules. The box is constructed from black ABS plastic with a UL94 V-0 flammability rating, ensuring flame retardant properties for safety.
The enclosure includes a cover and features built-in card guides to securely hold PCBs in place. It is rated IP54, offering protection against dust ingress and splashing water, making it suitable for a variety of indoor applications. The box has an average wall thickness of 2mm and includes threaded brass inserts for M3 screws, facilitating easy assembly and secure lid attachment. The inner box height is 20.9mm, providing clearance for components.
This enclosure is RoHS and REACH compliant, meeting environmental standards. It is packaged in shrink wrap and is part of Hammond's 1591 series, which offers a range of color and translucent variants. Accessories such as clear polycarbonate lids and replacement screws are available separately.
The IP rating is IP54, providing protection against dust ingress and splashing water.
The enclosure is made of plastic, ABS (acrylonitrile butadiene styrene).
The material flammability rating is UL94 V-0.
Length: 100.00mm (3.937"), Width: 50.00mm (1.969"), Height: 24.82mm (0.977").
Yes, it features built-in card guides.
Yes, RoHS3 compliant per the manufacturer.
Yes, the design includes a cover.
