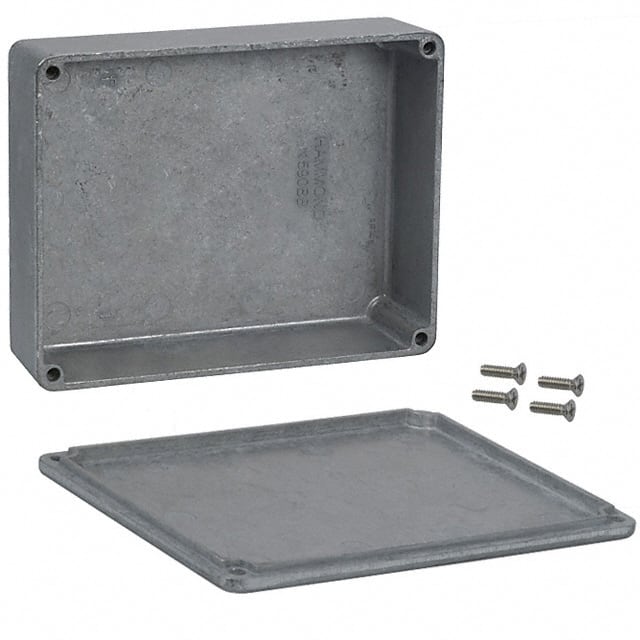

The Hammond Manufacturing 1590BB is a rugged diecast aluminum enclosure box designed for general-purpose electronic instrument housing. It measures 4.705 inches in length, 3.701 inches in width, and 1.339 inches in height, with a wall thickness of 2.26 mm. The enclosure is made from diecast aluminum alloy with a natural aluminum (unpainted) finish and weighs 0.22 kg (0.49 lbs).
The 1590BB features a lap joint construction where the lid meets the box, providing protection against dust and splashing water (IP54 rating) and improving EMI/RFI shielding. The cover is included and the box comes with factory-tapped screw holes and screws. The low side wall draft angle (2° or less) facilitates easy PC board mounting, with maximum PCB dimensions of 85.16 mm length and 110.66 mm width.
This enclosure is RoHS3 and REACH compliant, and is packaged in shrink wrap. It is suitable for a wide range of applications requiring a durable, shielded metal enclosure for electronic assemblies.
The external dimensions are 119.50 mm (4.705") length, 94.00 mm (3.701") width, and 34.00 mm (1.339") height.
The enclosure has an IP54 rating, providing protection against dust ingress and splashing water.
Yes, the 1590BB is RoHS3 compliant as confirmed by the manufacturer.
The enclosure is made from diecast aluminum alloy.
Yes, the design includes a cover.
The maximum PCB length is 85.16 mm and maximum PCB width is 110.66 mm.
