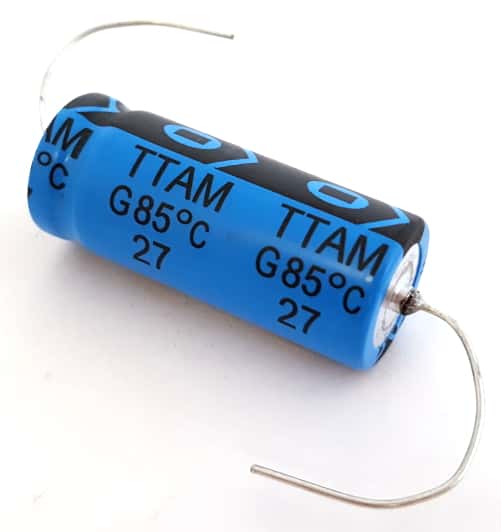

158TTA050M This Illinois Capacitor 158TTA050M is a 1500µF, 50V axial electrolytic capacitor. It operates within a temperature range of -40 to 85°C.
Mfr Part #:

158TTA050M

Available from 1 distributors
Mfr Name: ILL CAP
ILL CAP
This Illinois Capacitor 158TTA050M is a 1500µF, 50V axial electrolytic capacitor. It operates within a temperature range of -40 to 85°C.
✓ Total Stock: 4,500 pcs
$ Price Range: $1.20

158TTA050M Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
4,500 pcs
On Request
4500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

158TTA050M Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance
Color
Dimensions
Dissipation Factor
Lead Style
Mounting Type
Operating Temperature
Shape
Termination Method
Tolerance
Voltage
View Similar Products (0)

158TTA050M Description

Short technical summary and product information.

The Illinois Capacitor 158TTA050M is an axial electrolytic capacitor designed for through-hole mounting. It features a capacitance of 1500µF and a maximum working voltage of 50V, with a surge voltage rating of 63V.



This component has a tolerance of ±20% and operates within a temperature range of -40°C to 85°C. Its dimensions are 16mm x 41mm, and it has a blue cylindrical shape. The termination method is solder.



Compliance information indicates RoHS3 compliance, MSL 1 Unlimited, and REACH Unaffected status. The capacitor has a maximum ripple current of 1.48A and a maximum ESR of 0.1547 Ohms.

158TTA050M Quick Information

Product Type: Axial Electrolytic Capacitor
Series: TTA
Canonical Name: 1500uF 50V Axial Electrolytic Capacitor
Subcategory: Electrolytic Capacitor - Axial

158TTA050M Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

158TTA050M Estimated Pricing

Qty Low High
1+ $1.20 $1.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

158TTA050M Features

  • 1500µF capacitance and 50V voltage rating.
  • Axial electrolytic capacitor for through-hole mounting.
  • Operates from -40°C to 85°C.
  • RoHS3 compliant and REACH unaffected.
  • Dimensions: 16mm x 41mm.

158TTA050M Applications

  • Suitable for power supply filtering.
  • Used in general-purpose electronic circuits.
  • Ideal for energy storage applications.
  • Can be used in DC-DC converters.
  • Applicable in audio amplifier circuits.

158TTA050M FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance of the 158TTA050M?

The capacitance of the 158TTA050M is 1500 µF.

What is the voltage rating of the 158TTA050M?

The voltage rating of the 158TTA050M is 50 V.

What is the operating temperature range for the 158TTA050M?

The operating temperature range for the 158TTA050M is -40 to 85°C.

What is the mounting type for the 158TTA050M?

The mounting type for the 158TTA050M is Through Hole.

What are the dimensions of the 158TTA050M?

The dimensions of the 158TTA050M are 16 x 41 mm.

What is the tolerance of the 158TTA050M?

The tolerance of the 158TTA050M is ±20%.

What is the maximum ESR of the 158TTA050M?

The maximum ESR of the 158TTA050M is 0.1547 Ohms.
