| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

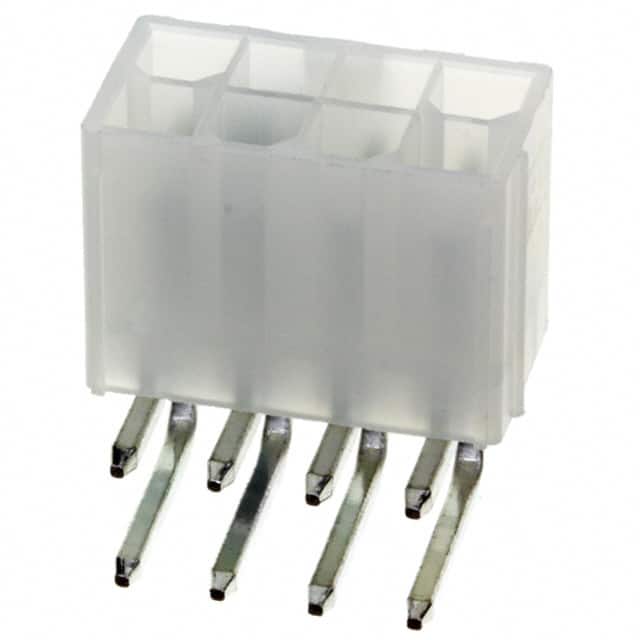

The TE Connectivity 1586041-8 is a shrouded header connector designed for board-to-cable/wire applications. It features 8 positions arranged in 2 rows with a 4.20mm pitch and a row spacing of 4.20mm.
The header uses through hole, right angle mounting and solder termination for secure PCB attachment. The housing is made of natural polyamide (PA) nylon with a UL94 V-2 flammability rating, and the male pins are made of brass alloy with a tin contact finish of 2.03µm thickness.
Electrical ratings include a current rating of 9A per contact and a voltage rating of 600VAC. The operating temperature range is -40°C to 105°C. The header features a shrouded 4-wall design with a locking ramp fastening type for secure mating.
The connector has 8 positions, arranged in 2 rows.
The pitch is 4.20mm.
The current rating is 9A.
The voltage rating is 600VAC.
The header uses through hole, right angle mounting.
