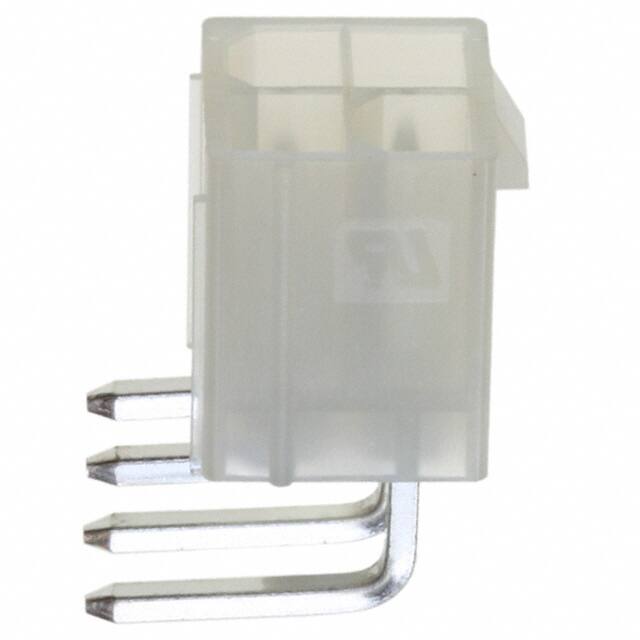

1586041-4 TE Connectivity 1586041-4 is a 4-position, 4.20mm pitch, right-angle header with male pins. It features a shrouded design with locking ramp for secure board-to-cable connections.
Mfr Part #:

1586041-4

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 1586041-4 is a 4-position, 4.20mm pitch, right-angle header with male pins. It features a shrouded design with locking ramp for secure board-to-cable connections.
✓ Total Stock: 10 pcs

1586041-4 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1586041-4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Termination
Termination Style
Voltage Rating
View Similar Products (0)

1586041-4 Description

Short technical summary and product information.

The TE Connectivity 1586041-4 is a 4-position header connector designed for board-to-cable/wire applications. It features a 4.20mm pitch and 2 rows of male pins with a right-angle through-hole mounting style. The connector is fully shrouded with a 4-wall design and includes a locking ramp fastening type for secure mating. The contacts are made of brass alloy with a tin finish, and the insulation is natural polyamide (PA) nylon with a UL94 V-2 flammability rating. Electrical ratings include 9A current and 600VAC voltage, with an operating temperature range of -40°C to 105°C. This header is suitable for power and signal connections in various industrial and automotive applications.

1586041-4 Quick Information

Product Type: Header, Male Pins
Canonical Name: TE Connectivity 1586041-4 Header, Male Pins, 4 Position, 4.20mm Pitch, Through Hole, Right Angle
Subcategory: Headers, Male Pins

1586041-4 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

1586041-4 Features

  • 4-position, 2-row header with 4.20mm pitch.
  • Right-angle through-hole mounting for space-saving designs.
  • Shrouded 4-wall design with locking ramp.
  • Rated for 9A current and 600VAC.
  • Operating temperature range -40°C to 105°C.

1586041-4 Applications

  • Used in power distribution in industrial equipment.
  • Suitable for wire-to-board connections in automotive systems.
  • Ideal for applications requiring secure locking connectors.

1586041-4 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

4 positions.

What is the pitch?

4.20mm.

What is the current rating?

9A.

What is the voltage rating?

600VAC.

What is the mounting type?

Through Hole, Right Angle.

What is the operating temperature range?

-40°C to 105°C.

What is the contact finish?

Tin.
