| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
156 pcs
|
156 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

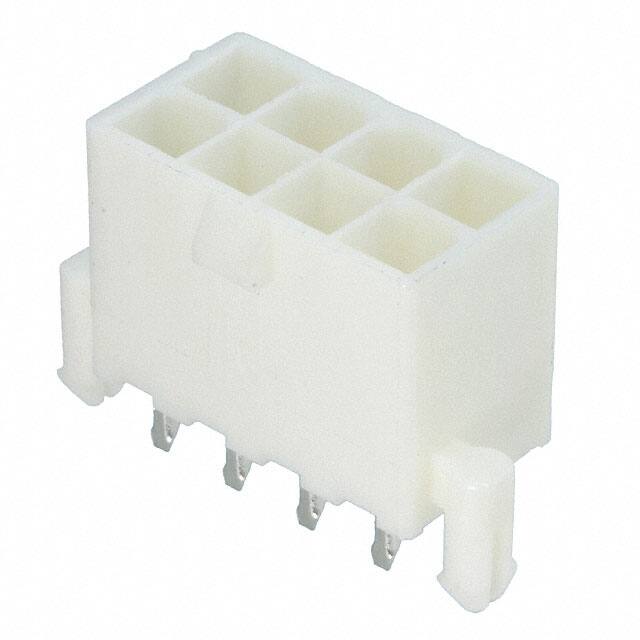

The TE Connectivity 1586040-8 is a rectangular connector header designed for board-to-cable/wire applications. It features 8 male pin contacts arranged in 2 rows with a 4.20mm pitch and row spacing. The connector is shrouded with a 4-wall design and includes a locking ramp fastening type for secure mating. The header is through-hole mounted with solder termination. Contacts are made of brass alloy with a tin finish (2.03µm thickness). The insulator is natural polyamide (PA) nylon with a UL94 V-0 flammability rating. Electrical ratings include 9A current and 600VAC voltage. Operating temperature range is -40°C to 105°C. The part includes a board lock feature for additional retention. This header is suitable for power and signal connections in various industrial and automotive applications.
4.20mm.
8 positions.
9A.
600VAC.
Through hole.
-40°C to 105°C.
Tin with 2.03µm thickness.
