| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,795 pcs
|
1795 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Diameter | |
| Impedance | |
| SVHC Present | |
| Temperature Rating |

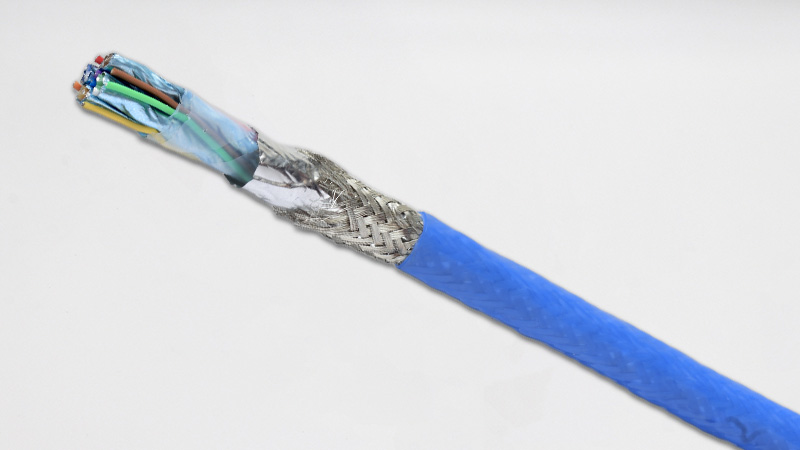

The Carlisle Interconnect Technologies 1586-305 is a Maxflite™ HDMI cable engineered for high-speed digital data transmission in demanding environments, particularly onboard aircraft. These compact A/V cables are designed to support High-Definition Multimedia Interface (HDMI) and transmit uncompressed digital streams.
Key specifications include a cable diameter of 0.315 inches and a weight of 72 lbs/1000ft. The cable features an impedance of 100 Ohms ± 10% and provides attenuation levels of 15 dB/100ft at 300 MHz, 36 dB/100ft at 1.6 GHz, and 59 dB/100ft at 4.1 GHz. It is rated for a temperature range of 150°C.
Designed to meet or exceed Federal Aviation Regulations for burn/smoke requirements, this HDMI cable is ideal for applications such as radar and weather mapping systems, communications, navigation systems, in-flight entertainment equipment, and EFB systems. Its construction emphasizes lightweight flexibility, optimum shielding for reliable performance, minimal insertion loss, and superior protection against EMI and RFI, making it suitable for all aircraft applications where temperature, noise protection, and flexibility are critical concerns.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The temperature rating is 150°C.
The impedance is 100 Ohms ± 10%.
The cable diameter is 0.315 inches.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
The REACH status is REACH Unaffected.
