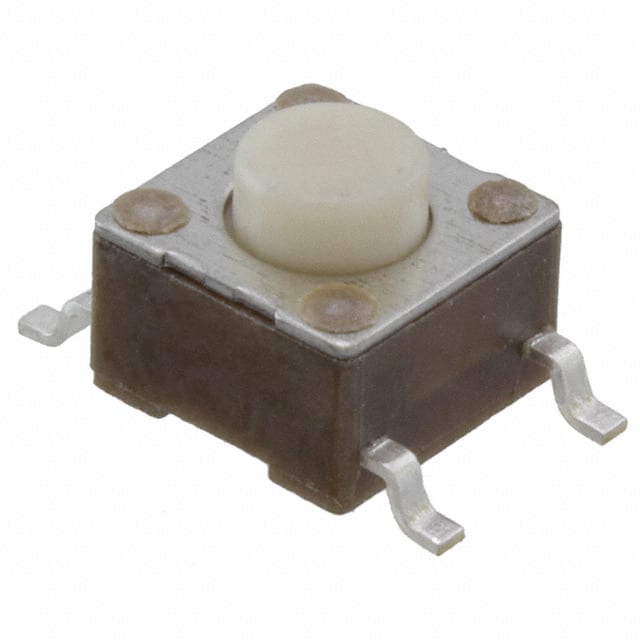

1571563-4 The TE Connectivity 1571563-4 is a tactile switch featuring a SPST-NO circuit and a contact rating of 0.05A at 24VDC. It is designed for surface mounting with gull wing termination.
Mfr Part #:

1571563-4

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
The TE Connectivity 1571563-4 is a tactile switch featuring a SPST-NO circuit and a contact rating of 0.05A at 24VDC. It is designed for surface mounting with gull wing termination.
✓ Total Stock: 7,200 pcs
$ Price Range: $0.75

1571563-4 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tokyo Device ✓
Non-Authorised Inventory information
7,200 pcs
On Request
7200 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1571563-4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Height off PCB, Vertical
Actuator Orientation
Actuator Type
Circuit
Contact Rating @ Voltage
Illumination
Mounting Type
Operating Force
Operating Temperature
Outline
Switch Function
Tape & Reel
Termination Style
View Similar Products (0)

1571563-4 Description

Short technical summary and product information.

This TE Connectivity 1571563-4 is a tactile switch with a SPST-NO (Single Pole Single Throw Normally Open) circuit configuration. It is rated for 0.05A at 24VDC, making it suitable for various low-power switching applications.



The switch features a surface mount design with gull wing termination for secure and reliable connections. Its operating temperature ranges from -35°C to 85°C, providing operational stability in diverse environments. The actuator is top actuated and has a height of 5.00mm off the PCB, with a standard actuator type. The overall outline of the switch is 6.00mm by 6.00mm.



Designed for non-illuminated operation, this tactile switch offers a straightforward and dependable solution for applications requiring momentary switching action.

1571563-4 Quick Information

Product Type: Tactile Switch
Canonical Name: TE Connectivity 1571563-4 Tactile Switch
Subcategory: Tactile Switch

1571563-4 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1571563-4 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

1571563-4 Features

  • SPST-NO tactile switch for momentary action.
  • Rated for 0.05A at 24VDC.
  • Surface mount with gull wing termination.
  • Operates from -35°C to 85°C.
  • Compact 6.00mm x 6.00mm footprint.

1571563-4 Applications

  • Ideal for general purpose switching.
  • Suitable for low-power electronic devices.
  • Used in control panel interfaces.
  • Applicable in consumer electronics.

1571563-4 FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the 1571563-4 tactile switch?

The operating temperature range is -35°C to 85°C.

What is the contact rating of the 1571563-4 switch?

The contact rating is 0.05A at 24VDC.

How is the 1571563-4 tactile switch mounted?

It is a surface mount switch.

What is the circuit configuration of the 1571563-4?

The circuit is SPST-NO.
