| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
280 pcs
|
280 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Lead Style | |
| Memory Type | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions |

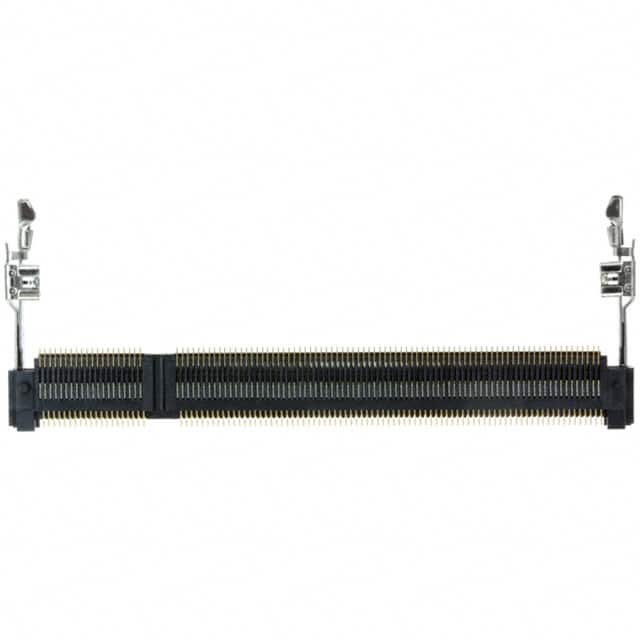

The TE Connectivity 1565918-4 is a 200 position SODIMM (Small Outline Dual In-line Memory Module) socket designed for DDR2 SDRAM memory modules. It features a surface mount, right angle termination with a reverse mounting feature, making it suitable for space-constrained applications where the memory module is mounted on the opposite side of the PCB.
The connector includes board guides and latches to ensure secure module retention and proper alignment during assembly. Contacts are finished with gold flash for reliable electrical performance and corrosion resistance. The connector is rated for DDR2 SDRAM memory types and is commonly used in laptops, embedded systems, and other compact electronic devices requiring memory expansion.
Packaging is surface mount, right angle, and the component has a Moisture Sensitivity Level (MSL) of 1 (unlimited) per unverified data. Compliance with RoHS3 and REACH is indicated but unverified. This part is a direct replacement for many standard SODIMM sockets in DDR2 applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.24 | $6.24 |
| 10+ | $5.30 | $5.30 |
| 150+ | $4.30 | $4.30 |
| 300+ | $4.22 | $4.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
200 positions.
DDR2 SDRAM.
Surface Mount, Right Angle.
Gold flash.
Yes, it includes board guide and latches.
Reverse mounting.
RoHS3 compliant (unverified).
