| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
95 pcs
|
95 pcs | On Request | 1 | On Request | On Request | 0614 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Lead Style | |
| Memory Type | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions |

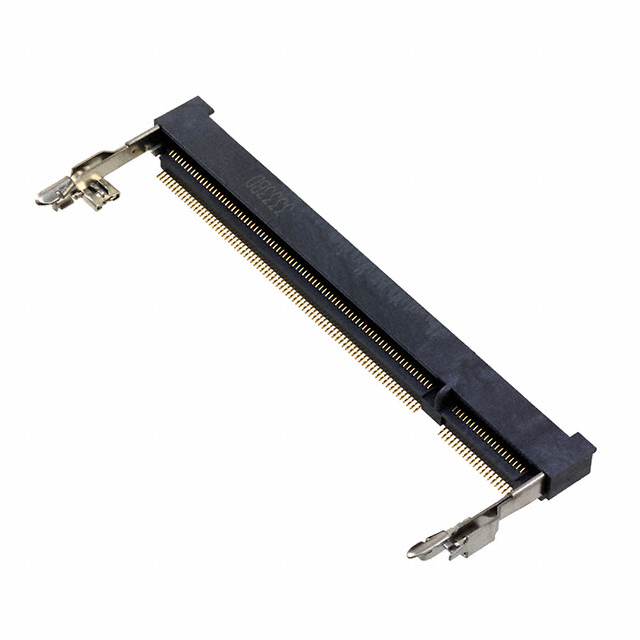

The TE Connectivity 1565691-1 is a 200-position SODIMM (Small Outline Dual In-line Memory Module) socket designed for DDR SDRAM memory modules. This connector uses a right angle surface mount (SMD) mounting style, making it suitable for compact PCB layouts where space is at a premium.
The socket includes a board guide and latches to ensure secure module insertion and retention. Contacts are finished with gold flash for reliable electrical performance. The mounting feature is normal, standard - top, indicating a standard top-mount configuration.
This connector is categorized under inline module sockets within memory connectors, commonly used in laptops, embedded systems, and other applications requiring a small form factor memory interface.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.46 | $11.46 |
| 20+ | $9.27 | $9.27 |
| 40+ | $8.83 | $8.83 |
| 60+ | $8.58 | $8.58 |
| 100+ | $8.28 | $8.28 |
| 260+ | $7.74 | $7.74 |
| 500+ | $7.39 | $7.39 |
| 1,000+ | $7.04 | $7.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 1565691-1 has 200 positions.
It is a surface mount, right angle connector.
It is designed for DDR SDRAM memory modules.
The contact finish is gold flash.
Yes, it includes a board guide and latches.
