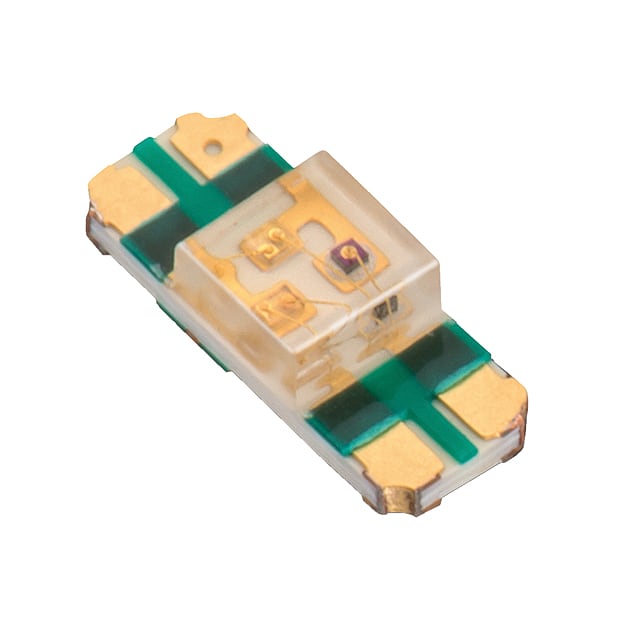

The Würth Elektronik 156125M173000 is a full-color, surface-mount RGB LED designed for general electronic equipment. It utilizes AlInGaP + InGaN chip technology to emit Red, Green, and Blue light.
Key electrical specifications include a continuous forward current of 20mA for each color, with typical forward voltages of 2-2.4V for Red and 3.3V for Green and Blue. Power dissipation is rated at 48mW for Red and 78mW for Green and Blue.
Optical characteristics include peak wavelengths of 632nm (Red), 520nm (Green), and 468nm (Blue), with dominant wavelengths of 624nm, 525nm, and 470nm respectively. Luminous intensity ranges from 28-80mcd for Red, 112-280mcd for Green, and 28-70mcd for Blue, all at 20mA. The LED offers a wide 120° viewing angle.
This component comes in a 4-SMD, No Lead package with dimensions of 3.20mm L x 1.20mm W and a maximum height of 0.80mm. It is designed for bottom entry mounting. The operating temperature range is -40°C to +85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage for the Red emitter is 2-2.4V, and for the Green and Blue emitters is 3.3V.
The continuous forward current for Red, Green, and Blue emitters is 20mA.
The peak wavelengths are 632nm for Red, 520nm for Green, and 468nm for Blue.
Luminous intensity is 28-80mcd for Red, 112-280mcd for Green, and 28-70mcd for Blue.
The operating temperature range is -40°C to +85°C.
This LED is supplied in a 4-SMD, No Lead package.
