| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,350 pcs
|
1350 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Chip Technology | |
| Color | |
| Configuration | |
| Continuous Forward Current | |
| Current | |
| Dominant Wavelength | |
| ESD Threshold/ Human Body Model | |
| Emitting Color | |
| Forward Voltage | |
| Halogen Free | |
| Height (Max) | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Lens Type | |
| Luminous Intensity | |
| Millicandela Rating | |
| Mounting Type | |
| Operating Temperature | |
| Peak Forward Current | |
| Peak Wavelength | |
| Power Dissipation | |
| Reverse Current | |
| Reverse Voltage | |
| Spectral Bandwidth | |
| Storage Conditions (@ for single parts) | |
| Storage Conditions (in original packaging) | |
| Supplier Device Package | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

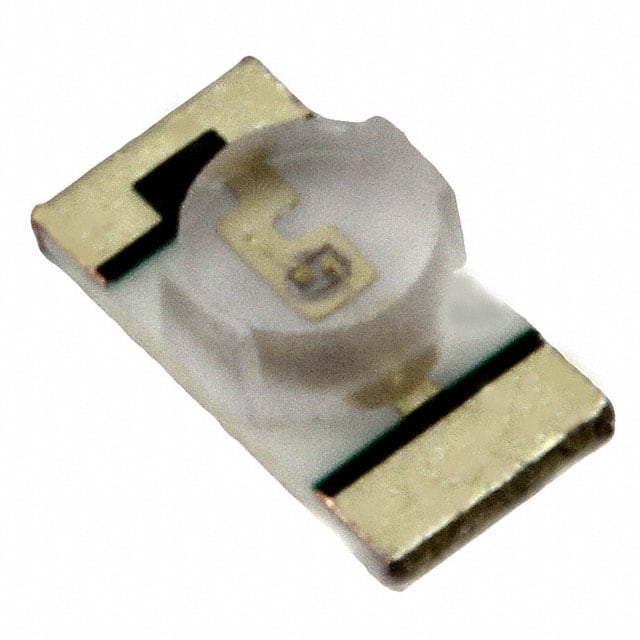

The Würth Elektronik 156120RS75300 is a discrete red LED designed for surface mount applications. It features a clear, cylindrical lens and operates with a typical forward voltage of 2V and a continuous forward current of 25mA.
Key electrical and optical characteristics include a peak wavelength of 632nm, dominant wavelength of 624nm, and a luminous intensity of 60mcd at 20mA. The LED has a broad viewing angle of 140°.
This component is housed in a 1206 (3216 Metric) package, measuring 3.20mm L x 1.60mm W with a maximum height of 1.40mm. It is suitable for a wide operating temperature range of -40°C to +85°C.
The Würth Elektronik 156120RS75300 is designed for general electronic equipment and complies with RoHS3 standards. It also meets Halogen Free requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to +85°C.
This LED is in a 1206 (3216 Metric) package.
The typical luminous intensity is 60 mcd at 20 mA.
The viewing angle is 140°.
This LED is RoHS3 Compliant.
The Moisture Sensitivity Level is 3.
Yes, this component is Halogen Free, conforming to IEC 61249-2-21.
