| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bundle Diameter | |
| Bundle Diameter Max | |
| Bundle Diameter Min | |
| Color | |
| Customs Number | |
| Disc Diameter | |
| Features | |
| Fixation Method | |
| Flammability Rating | |
| Height | |
| Length | |
| Material | |
| Minimum Tensile Strength | |
| Mounting Hole Diameter Max | |
| Mounting Hole Diameter Min | |
| Mounting Type | |
| Operating Temperature Max | |
| Operating Temperature Min | |
| Package Quantity | |
| Package Type | |
| Panel Thickness (max) | |
| Panel Thickness Min | |
| Tensile Strength | |
| Tie Closure | |
| UL Flammability | |
| UV Resistant | |
| Use Conditions | |
| Variant | |
| Width | |
| Wire |

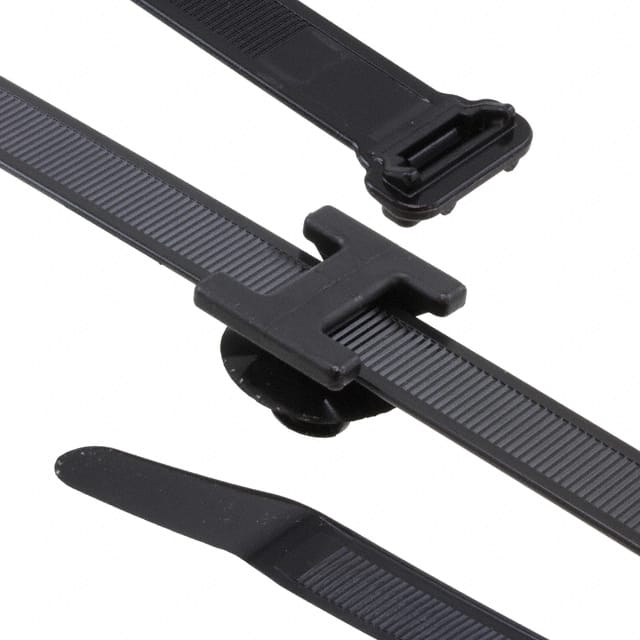

HellermannTyton 156-00070 is a heavy duty cable tie assembly with a fir tree mount for round holes. The tie features a friction tab that holds it in place before installation, and the fir tree design provides low insertion force with high extraction resistance. A disc feature prevents rattling in high-vibration applications and protects against debris ingress.
The cable tie is made from polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) material, rated for indoor and outdoor use. It has a minimum tensile strength of 535 N (120 lbf) and a length of 383.5 mm (15.1 in). The tie accommodates bundle diameters from 9.5 mm to 105 mm (0.37 to 4.13 in) and uses a plastic pawl closure with inside serrations.
The mount fits panel thicknesses from 1.0 to 6.5 mm (0.04 to 0.26 in) and requires mounting holes 8.7 to 9.2 mm in diameter. The assembly is packaged in bags of 100 pieces. It is RoHS compliant, REACH unaffected, and has a UL 94 HB flammability rating. Operating temperature range is -40°C to 105°C.
The operating temperature range is -40°C to 105°C (-40°F to 221°F).
Yes, it is RoHS3 compliant per the datasheet.
The minimum tensile strength is 535 N (120 lbf).
It accommodates bundle diameters from 9.5 mm (0.37 in) to 105 mm (4.13 in).
It is made of polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV).
The mounting hole diameter should be between 8.7 mm and 9.2 mm (0.34 to 0.36 in).
The package contains 100 pieces per bag.
