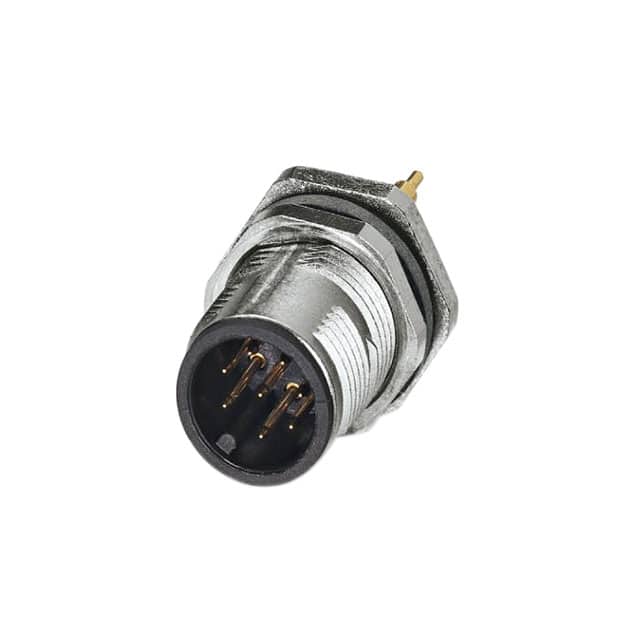

1552997 Phoenix Contact 1552997 is an M12 male plug connector with 8 positions, shielded, and solder termination. It features gold-plated contacts and an IP67 rating.
Mfr Part #:

1552997

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1552997 is an M12 male plug connector with 8 positions, shielded, and solder termination. It features gold-plated contacts and an IP67 rating.
✓ Total Stock: 1 pcs

1552997 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1552997 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Type
Contact Finish
Contact Material
Current Rating
Current Rating (Amps)
Fastening Type
Features
Ingress Protection
Insulation Resistance
Lead Style
Material Flammability Rating
Mounting Feature
Mounting Type
Number of Positions
Operating Temperature
Orientation
Primary Material
Shell Finish
Shell Material
Shell Size
Shielding
Standards
Termination
Torque
Voltage Rating
View Similar Products (0)

1552997 Description

Short technical summary and product information.

The Phoenix Contact 1552997 (SACC-DSI-MS-8CON-M12-SCO SH) is an M12 circular connector plug designed for sensor/actuator applications. It has 8 male pins with gold-plated contacts for reliable signal transmission. The connector is shielded and features a push-twist fastening system (SPEEDCON) for quick mating.



Electrical ratings include a current rating of 2 A at 40°C and a voltage rating of 30 V. The insulation resistance is ≥ 100 MΩ, and the rated surge voltage is 0.8 kV. The connector is rated IP67 for dust-tight and waterproof protection when mated.



The housing is made of zinc die-cast with a nickel finish, and the contact carrier is PA 66 with a UL94 V-0 flammability rating. The operating temperature range is -25°C to 85°C. Mounting is panel mount with a bulkhead front side nut, and termination is via solder pins.

1552997 Quick Information

Product Type: Circular Connector Plug
Series: DSI-MS-8CON-M12-SCO SH
Canonical Name: Phoenix Contact SACC-DSI-MS-8CON-M12-SCO SH Panel Feed-Through, M12 Male Plug, 8 Positions, Shielded, Solder Termination
Subcategory: M12 Connectors

1552997 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

1552997 Features

  • M12 male plug with 8 positions.
  • Shielded for EMI protection.
  • Gold-plated contacts for reliable connection.
  • IP67 rated for dust and water ingress.
  • Push-twist fastening for quick mating.

1552997 Applications

  • Used in sensor/actuator applications.
  • Suitable for industrial automation networks.
  • Ideal for harsh environment connections.
  • Applicable in fieldbus and device-level wiring.

1552997 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the Phoenix Contact 1552997?

The current rating is 2 A at 40°C.

What is the voltage rating of this connector?

The voltage rating is 30 V.

How many positions does the 1552997 have?

It has 8 positions.

What is the mounting type for this connector?

It is panel mount with a bulkhead front side nut.

What is the ingress protection rating?

The connector is rated IP67, meaning it is dust-tight and protected against temporary immersion in water.

What is the operating temperature range?

The operating temperature range is -25°C to 85°C (plug/socket), and -40°C to 85°C without mechanical actuation.

What is the shell material and finish?

The shell is made of zinc die-cast with a nickel finish.
