| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination |

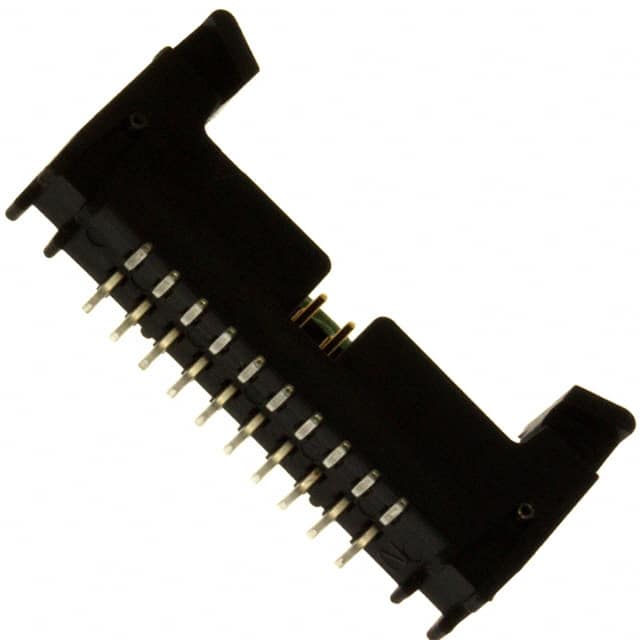

The 3M 155220-2300-RB is a 20-position, 2-row, 2.00mm pitch surface mount header designed for board-to-cable/wire applications. It features a shrouded 4-wall design with latch lock/eject hooks for secure mating and easy disconnection. The header uses square male pins made of copper alloy with a 30.0µin tin finish, providing reliable electrical contact.
The insulation is molded from black glass-filled liquid crystal polymer (LCP) with a UL94 V-0 flammability rating, suitable for a wide operating temperature range of -55°C to 105°C. The header is rated for 1.25A per contact and includes a keying slot for polarization. The surface mount termination allows for automated assembly processes.
The pitch is 2.00mm (0.079 inches).
It has 20 positions arranged in 2 rows.
The current rating is 1.25A per contact.
It is a surface mount (SMD) connector with solder termination.
The operating temperature range is -55°C to 105°C.
