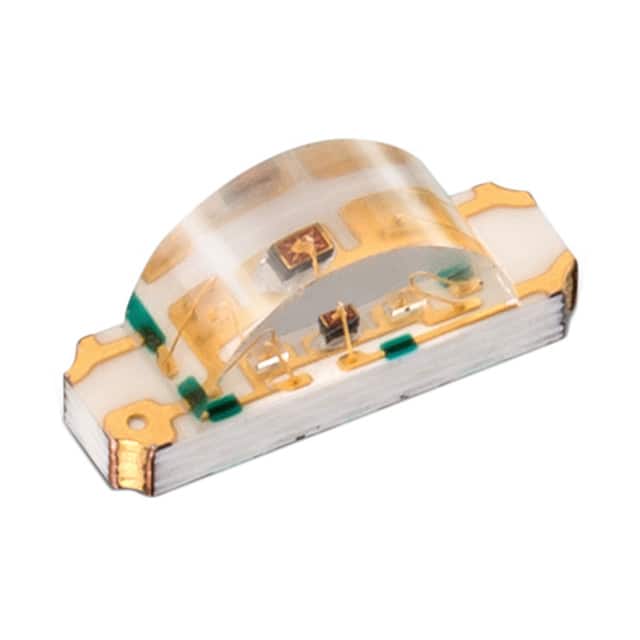

The Würth Elektronik 155124M173200A is a full-color, side-view RGB LED designed for surface mount applications. It features a compact 1204 package measuring 3.20mm in length and 1.48mm in width, with a maximum height of 1.10mm.
This LED integrates Red, Green, and Blue chips, providing versatile color mixing capabilities. Key electrical characteristics include a continuous forward current of 20mA for each color, with typical forward voltages of 2V for Red, 3V for Green, and 3.1V for Blue. The peak wavelengths are 632nm (Red), 515nm (Green), and 465nm (Blue), with corresponding dominant wavelengths of 622nm, 523nm, and 470nm.
Optical performance is highlighted by typical luminous intensities of 200mcd for Red, 500mcd for Green, and 150mcd for Blue at 20mA. The lens type is round with a domed top, offering viewing angles of 120° and 100°. The lens color is colorless, ensuring clear light output.
Operating temperature ranges from -40°C to +85°C. The component is suitable for reflow soldering and pick and place machines, making it ideal for automated assembly processes. Applications include backlighting, status indicators, and front panel indicators in office automation, home appliances, and industrial equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltages are 2V for Red, 3V for Green, and 3.1V for Blue.
The peak wavelengths are 632nm for Red, 515nm for Green, and 465nm for Blue.
Typical luminous intensities are 200mcd for Red, 500mcd for Green, and 150mcd for Blue.
The operating temperature range is -40°C to +85°C.
The package is 1204 (4-SMD, No Lead) and the mounting type is Surface Mount, Right Angle.
