| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Average Wall Thickness | |
| Color | |
| Container Type | |
| Design | |
| Features | |
| Gasket | |
| Height | |
| IP Rating | |
| Inside Depth | |
| Inside Length | |
| Inside Width | |
| Length | |
| Material | |
| Material Detail | |
| Max. P.C. Board Length | |
| Max. P.C. Board Width | |
| NEMA Rating | |
| Packaging Type | |
| Ratings | |
| Screw Torque | |
| Shipping Weight | |
| Thickness | |
| Width |

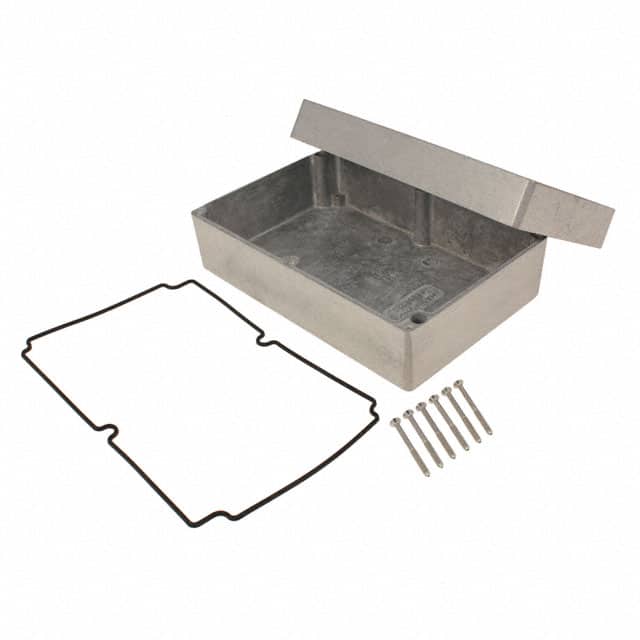

The Hammond Manufacturing 1550Z220 is a watertight diecast aluminum enclosure from the 1550Z Series. It features an unpainted natural aluminum finish and includes a pre-formed silicone gasket and cover screws. The external dimensions are 222.50mm (8.760") length, 146.51mm (5.768") width, and 82.50mm (3.248") height, with an average wall thickness of 3.00mm (0.12").
Inside, the enclosure provides 214.49mm (8.44") length, 138.49mm (5.45") width, and 77.00mm (3.03") depth, accommodating PC boards up to 137.33mm length and 213.33mm width. The diecast aluminum alloy construction offers robust protection in demanding environments.
The enclosure is rated IP68 for dust and water ingress protection and meets NEMA 4, 4X, 12, and 13 standards. It is designed for wall mounting and is suitable for indoor and outdoor applications where watertight sealing is required. The cover is secured with M4 screws torqued to 5-7.5 lbf.in (50-75 cN.m).
The external dimensions are 222.50mm (8.760") length, 146.51mm (5.768") width, and 82.50mm (3.248") height.
It is rated IP68 and NEMA 4, 4X, 12, and 13.
It is made from diecast aluminum alloy.
Yes, it includes a pre-formed silicone gasket.
The shipping weight is 1.18 kg (2.6 lbs).
Internal dimensions are 214.49mm (8.44") length, 138.49mm (5.45") width, and 77.00mm (3.03") depth.
