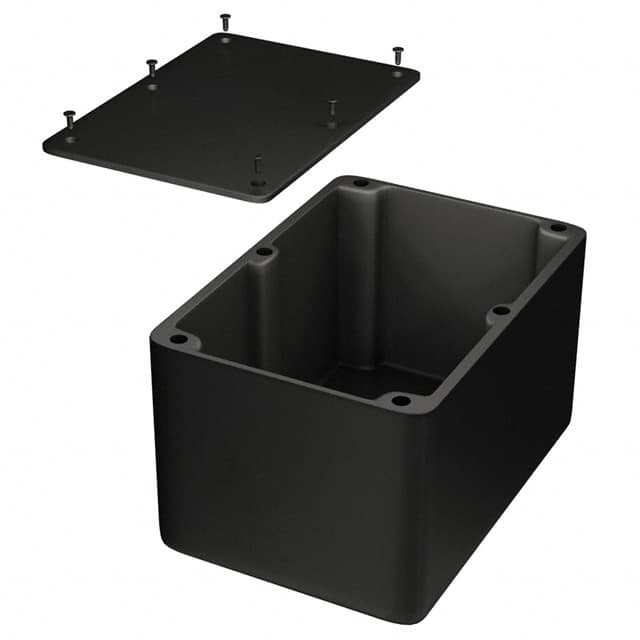

The Hammond Manufacturing 1550FBK is a black diecast aluminum enclosure box from the 1550 series. It includes a cover and six M3.5-0.6 x 12 mm lid screws. The external dimensions are 171 mm x 121 mm x 101 mm (6.73 x 4.76 x 3.98 in), with a wall thickness of 2.01 mm. The internal usable space measures 161.84 mm x 105.1 mm x 99.84 mm (6.37 x 4.14 x 3.93 in).
The enclosure is rated IP54 for protection against dust ingress and splashing water. It is made from diecast aluminum alloy with a black textured finish. The recommended lid screw torque is 75 ozf.in (55 cN.m). The product is RoHS and REACH compliant, and is packaged in shrink wrap.
Optional accessories include replacement gasket kits (1550EEGASKET for IP66, 1550ESGASKET for IP67) and black stainless steel replacement screws (1550MS100BK). The enclosure can be factory modified for custom milling, drilling, or printing.
The enclosure is made of diecast aluminum alloy.
External dimensions are 171 mm x 121 mm x 101 mm (6.73 x 4.76 x 3.98 in).
It has an IP54 rating.
Yes, it is RoHS compliant per the manufacturer.
Six M3.5-0.6 x 12 mm lid screws are included.
The shipping weight is 0.60 kg (1.32 lbs).
Replacement gasket kits (1550EEGASKET for IP66, 1550ESGASKET for IP67) and black stainless steel screw packs (1550MS100BK) are available.
