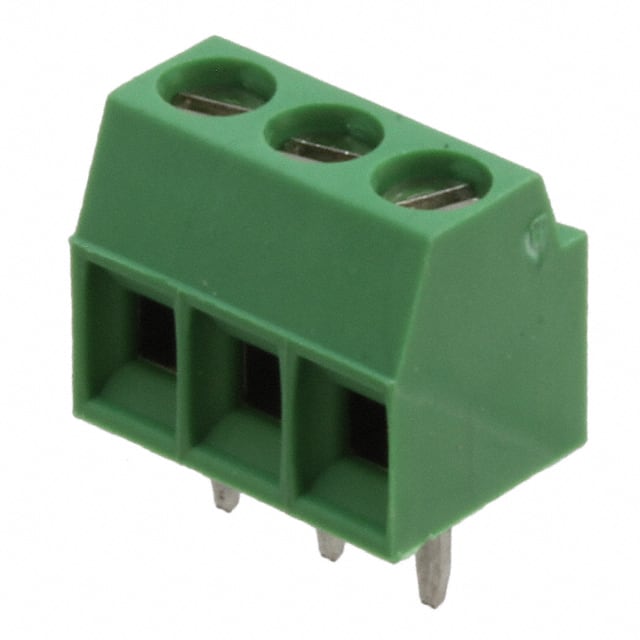

The TE Connectivity 1546551-3 is a 3 position wire to board terminal block designed for reliable PCB mounting. It features a 3.5mm pitch and side wire entry orientation, making it suitable for compact board layouts. The terminal block uses a screw - rising cage clamp wire termination method, accommodating wire gauges from 16 to 28 AWG with a stripping length of 5.0-6.0 mm.
Electrically, this terminal block is rated for 12 A maximum current and 300 V maximum voltage. It offers a contact resistance of less than 15 mOhm and an insulation resistance greater than 1000 MOhm at 500 V DC. The operating temperature range spans from -40°C to +110°C.
The housing is made of PA66 material with a UL94 V-0 flammability rating and is colored green. Terminals are copper alloy with tin plating, while the clamp and screw are copper alloy with nickel plating. The recommended tightening torque for the M2 screw is 0.2 Nm. The component is packaged in a tray.
The pitch is 3.5 mm.
The maximum current rating is 12 A.
The maximum voltage rating is 300 V.
It accepts 16 to 28 AWG wire.
Through hole mounting.
-40°C to +110°C.
Green PA66 housing with UL94 V-0 rating.
