| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coding | |
| Color | |
| Connector Type | |
| Contact Carrier Material | |
| Contact Finish | |
| Contact Material | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Ingress Protection | |
| Insulation Resistance | |
| Lead Style | |
| Material Flammability Rating | |
| Minimum Order Quantity | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Packing Unit | |
| Pollution Degree | |
| Primary Material | |
| Sealing Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Solder Contact Length | |
| Standards | |
| Surge Voltage Category | |
| Termination | |
| Voltage Rating | |
| Volume Resistance |

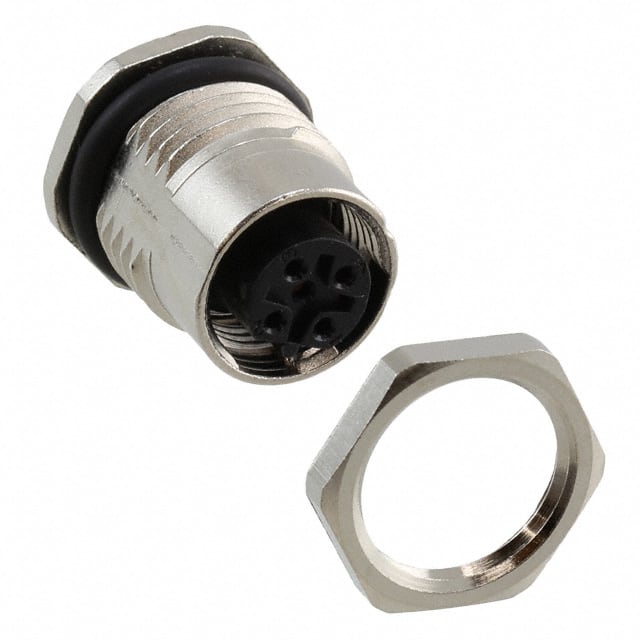

The Phoenix Contact 1543650 is a panel feed-through circular connector from the SACC-DSI-FSB series. It features a 5-position female receptacle with M12 SPEEDCON coupling, B-coded orientation, and a push-twist fastening mechanism for quick, secure mating.
This connector is rated for 4 A at 60 V and provides IP67 dust-tight and waterproof protection. The metal shell is zinc die-cast with a nickel finish, and the contacts are gold-plated CuZn. The solder pin termination with 6 mm contact length ensures reliable board-level connections.
Designed for rear panel mounting with a Pg9 thread and flat nut, it is suitable for sensor/actuator applications in industrial automation. The operating temperature range of -25°C to 85°C and a UL94 V-0 flammability rating for the contact carrier material ensure robust performance.
It has 5 positions (female sockets).
Rated voltage is 60 V and rated current is 4 A.
IP67, which provides dust-tight and waterproof protection.
Panel mount, through hole, with bulkhead front side nut (rear mounting with Pg9 thread).
B-coded (inverse) with push-twist (SPEEDCON) fastening.
-25°C to +85°C.
Contacts are gold-plated CuZn (brass), shell is zinc die-cast with nickel finish.
